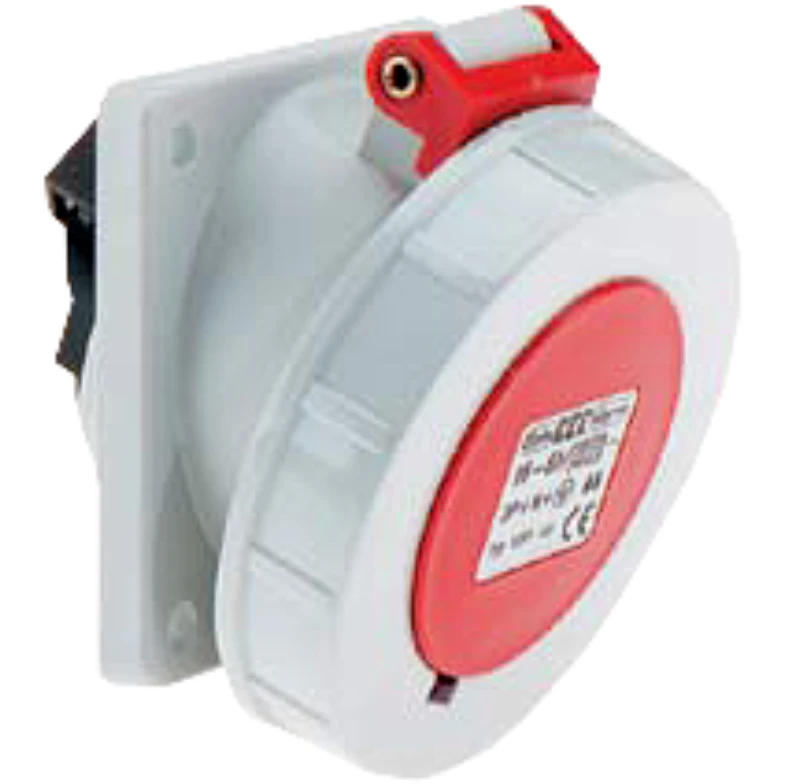

CEENorm Socket Panel 3P+E IP67 32A 415V Red

Description

Technical Specifications  Technical Specifications Panel-mounted CEE socket outlet Voltage acc. EN 60309-2 400 V (50+60 Hz) red Connection system Screwed terminal Identification colour Red Surface finish contacts Untreated Contact material CuZn Angle of plug Angled Amperage acc. UL/CSA (for UL-version) – A Drill hole distance vertical 85 mm Material Plastic Flange size vertical 100 mm Degree of protection (IP rating) IP67 Flange size horizontal 92 mm IEC-amperage 32 A Clock hour position 6 h RAL number 3000 Number of poles 4 Rated frequency – Hz Military model No Drill hole distance horizontal 77 mm Rated voltage – V · Technical Data Sheet – Click to Download
