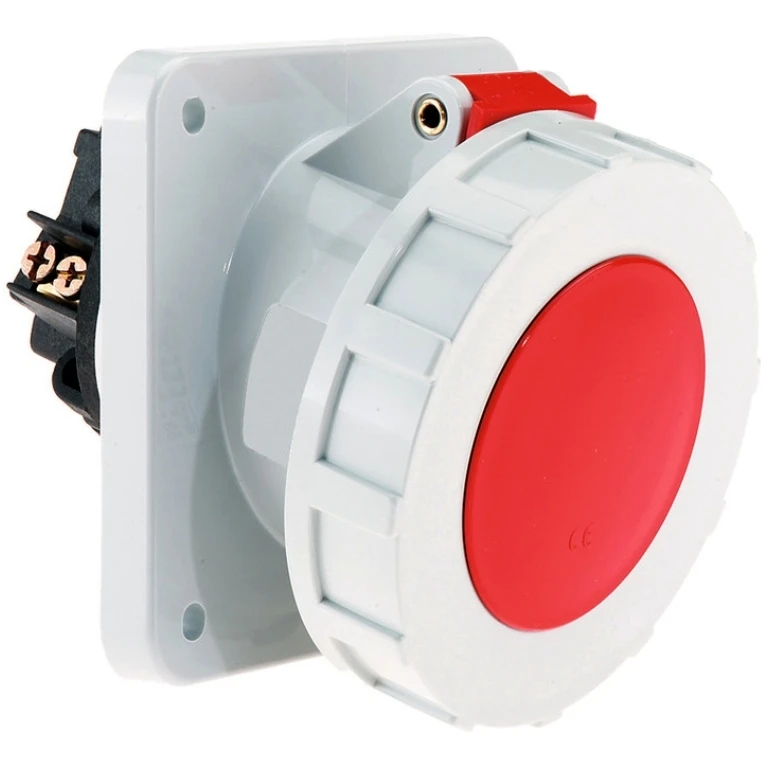

CEENorm Socket Panel 3P+N+E IP67 125A 415V Red

Description

Technical Specifications  Technical Specifications Panel-mounted CEE socket outlet Material Plastic Surface finish contacts Nickel-plated Voltage acc. EN 60309-2 400 V (50+60 Hz) red Degree of protection (IP rating) IP67 Identification colour Red Connection system Screwed terminal Contact material CuZn Angle of plug Angled Amperage acc. UL/CSA (for UL-version) – A IEC-amperage 125 A Drill hole distance vertical 90 mm Clock hour position 6 h Flange size vertical 114 mm Drill hole distance horizontal 90 mm Flange size horizontal 114 mm Number of poles 5 RAL number 3000 Rated frequency – Hz Rated voltage – V Military model No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
