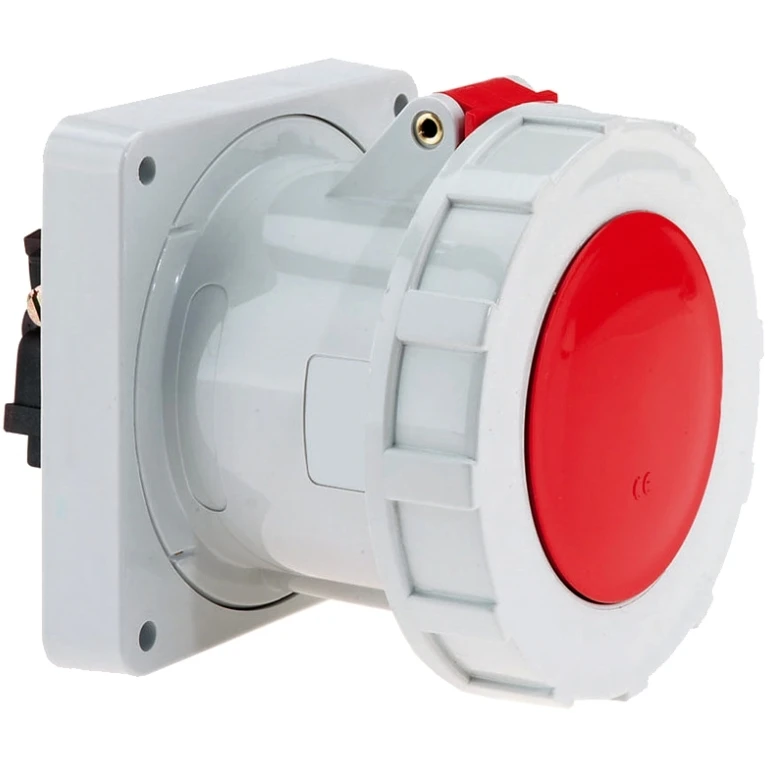

CEENorm Socket Panel 3P+N+E IP67 125A 415V Red
CEENorm Socket Panel 3P+N+E IP67 125A 415V Red
CEENorm Socket Panel 3P+N+E IP67 125A 415V Red - Image 2

CEENorm Socket Panel 3P+N+E IP67 125A 415V Red

£400.36 Incl. VAT

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 13451 Categories: , , Brand: Product Code: 2500117615

Description

Technical Specifications  Technical Specifications Panel-mounted CEE socket outlet Material Plastic Surface finish contacts Nickel-plated Voltage acc. EN 60309-2 400 V (50+60 Hz) red Degree of protection (IP rating) IP67 Angle of plug Straight Identification colour Red Connection system Screwed terminal Contact material CuZn RAL number 3000 Amperage acc. UL/CSA (for UL-version) – A Number of poles 5 IEC-amperage 125 A Clock hour position 6 h Drill hole distance vertical 100 mm Drill hole distance horizontal 100 mm Flange size vertical 120 mm Flange size horizontal 120 mm Rated frequency – Hz Rated voltage – V Military model No
