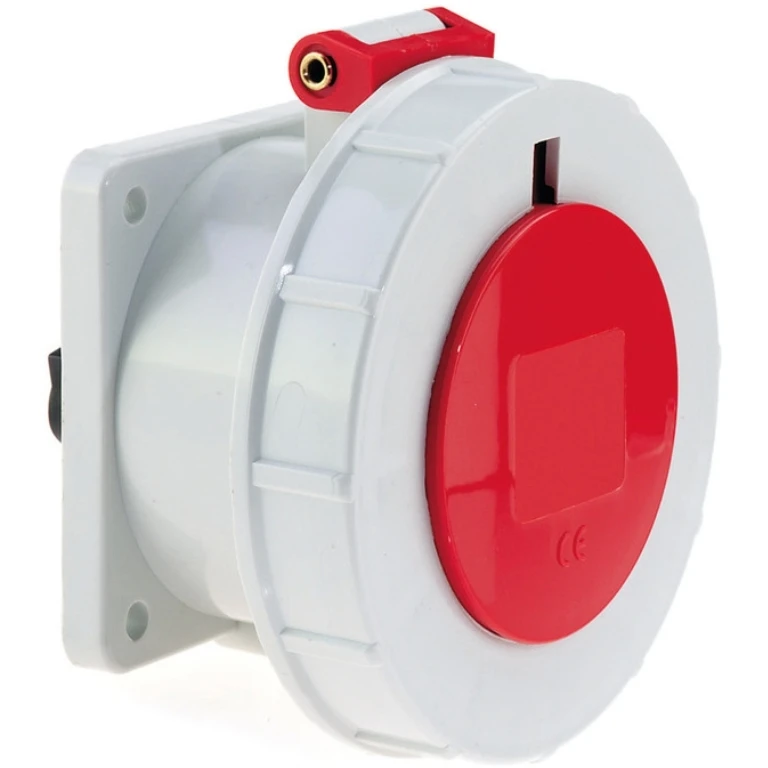

CEENorm Socket Panel 3P+N+E IP67 32A 415V Red

Description

Technical Specifications  Technical Specifications Panel-mounted CEE socket outlet Material Plastic Degree of protection (IP rating) IP67 Voltage acc. EN 60309-2 400 V (50+60 Hz) red Angle of plug Straight Connection system Screwed terminal Identification colour Red Contact material CuZn Surface finish contacts Untreated RAL number 3000 Amperage acc. UL/CSA (for UL-version) – A Drill hole distance horizontal 60 mm Drill hole distance vertical 60 mm Flange size vertical 75 mm Flange size horizontal – mm IEC-amperage 32 A Clock hour position 6 h Number of poles 5 Rated frequency – Hz Rated voltage – V Military model No
