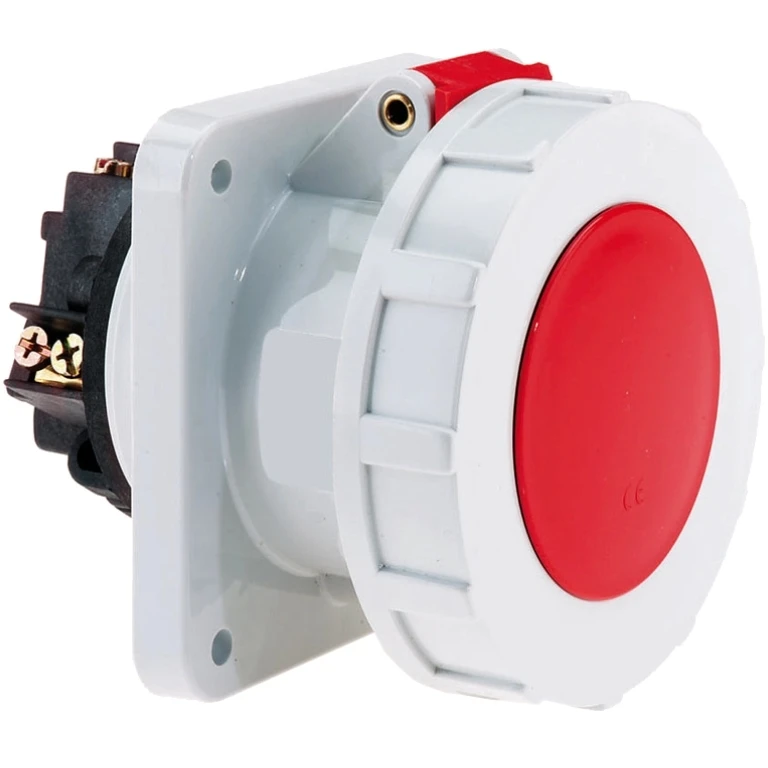

CEENorm Socket Panel 3P+N+E IP67 63A 415V Red
CEENorm Socket Panel 3P+N+E IP67 63A 415V Red
CEENorm Socket Panel 3P+N+E IP67 63A 415V Red - Image 2

CEENorm Socket Panel 3P+N+E IP67 63A 415V Red

£108.28 Incl. VAT

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 13104 Brand: Product Code: 2500036860

Description

Technical Specifications  Technical Specifications Panel-mounted CEE socket outlet Material Plastic Surface finish contacts Nickel-plated Degree of protection (IP rating) IP67 Voltage acc. EN 60309-2 400 V (50+60 Hz) red Angle of plug Straight Connection system Screwed terminal Contact material CuZn Identification colour Red RAL number 3000 Number of poles 5 Drill hole distance vertical 85 mm Amperage acc. UL/CSA (for UL-version) – A Drill hole distance horizontal 77 mm Flange size vertical 107 mm Flange size horizontal 100 mm IEC-amperage 63 A Clock hour position 6 h Rated frequency – Hz Rated voltage – V Military model No
