CEENorm Socket Straight Panel 3P+N+E IP44 32A 415V 75X75mm Red
CEENorm Socket Straight Panel 3P+N+E IP44 32A 415V 75X75mm Red

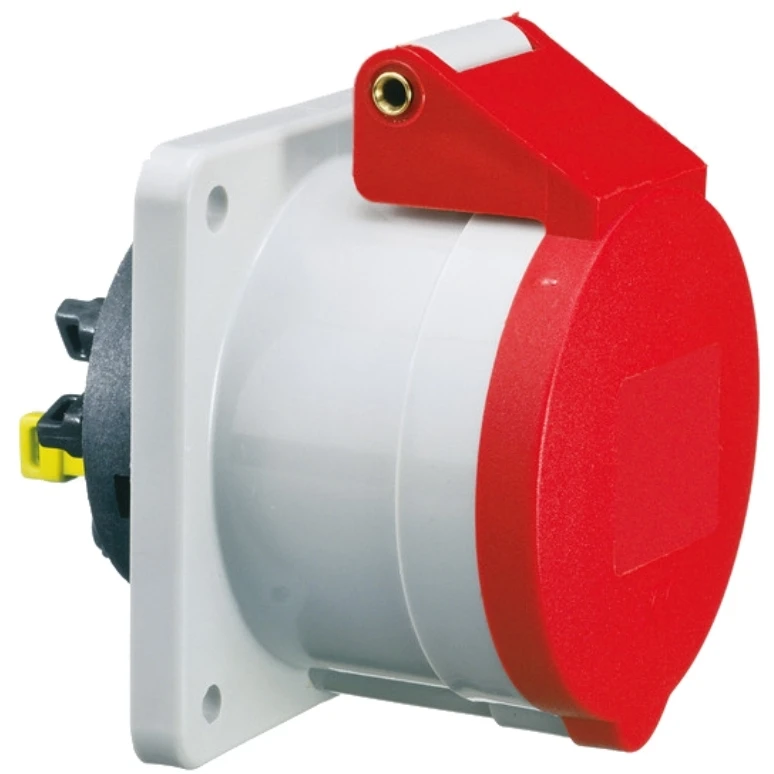

CEENorm Socket Straight Panel 3P+N+E IP44 32A 415V 75X75mm Red - Image 2

CEENorm Socket Straight Panel 3P+N+E IP44 32A 415V 75X75mm Red

£61.51 Incl. VAT

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 132002 Brand: Product Code: 2500134011

Description

Technical Specifications  Technical Specifications Panel-mounted CEE socket outlet Material Plastic Connection system Screw less terminal Degree of protection (IP rating) IP44 Voltage acc. EN 60309-2 400 V (50+60 Hz) red Identification colour Red Angle of plug Straight Contact material CuZn Surface finish contacts Untreated RAL number 3000 Number of poles 5 Amperage acc. UL/CSA (for UL-version) – A IEC-amperage 32 A Clock hour position 6 h Drill hole distance vertical 60 mm Drill hole distance horizontal 60 mm Flange size vertical 75 mm Flange size horizontal – mm Rated frequency – Hz Rated voltage – V Military model No
