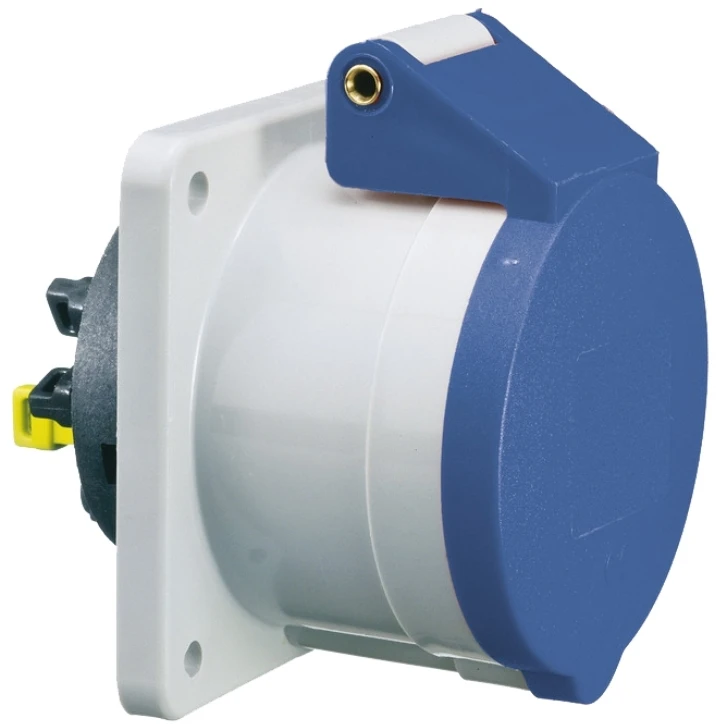

CEENorm Socket Strut Panel 2P+E IP44 16A 240V 75X75mm Quick Connect

Description

Technical Specifications  Technical Specifications Panel-mounted CEE socket outlet Connection system Screw less terminal Material Plastic Degree of protection (IP rating) IP44 Angle of plug Straight Identification colour Blue Voltage acc. EN 60309-2 230 V (50+60 Hz) blue Surface finish contacts Untreated Contact material CuZn Number of poles 3 IEC-amperage 16 A Drill hole distance vertical 60 mm Amperage acc. UL/CSA (for UL-version) – A Flange size vertical 75 mm Drill hole distance horizontal 60 mm Flange size horizontal – mm Clock hour position 6 h RAL number 5015 Rated frequency – Hz Rated voltage – V Military model No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
