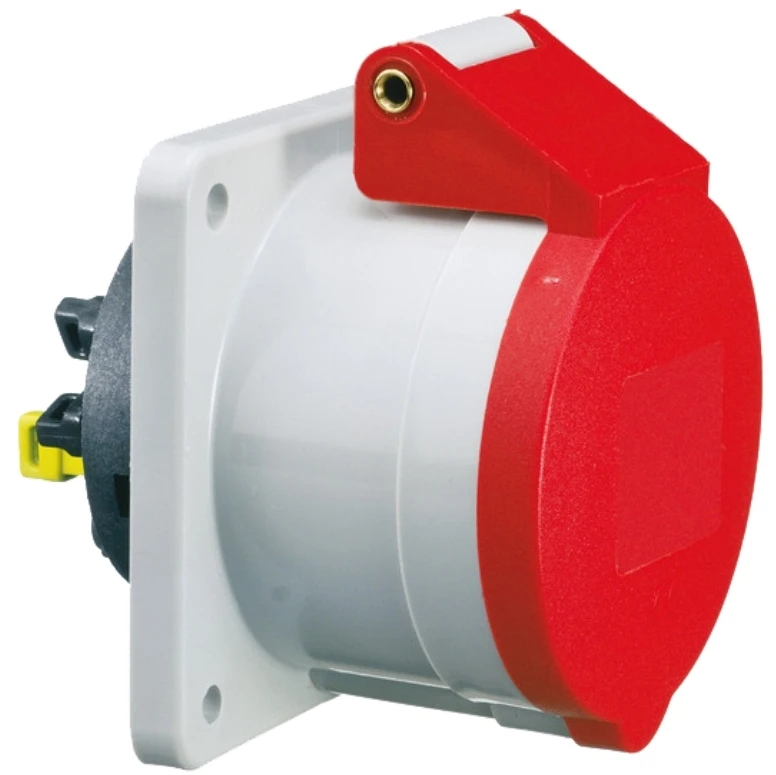

CEENorm Socket Strut Panel 3P+E IP44 16A 415V 75X75mm Quick Connect

Description

Technical Specifications  Technical Specifications Panel-mounted CEE socket outlet Connection system Screw less terminal Material Plastic Degree of protection (IP rating) IP44 Voltage acc. EN 60309-2 400 V (50+60 Hz) red Angle of plug Straight Identification colour Red Contact material CuZn Surface finish contacts Untreated RAL number 3000 Amperage acc. UL/CSA (for UL-version) – A Drill hole distance horizontal 60 mm Drill hole distance vertical 60 mm Flange size horizontal – mm Flange size vertical 75 mm Number of poles 4 IEC-amperage 16 A Clock hour position 6 h Rated frequency – Hz Rated voltage – V Military model No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
