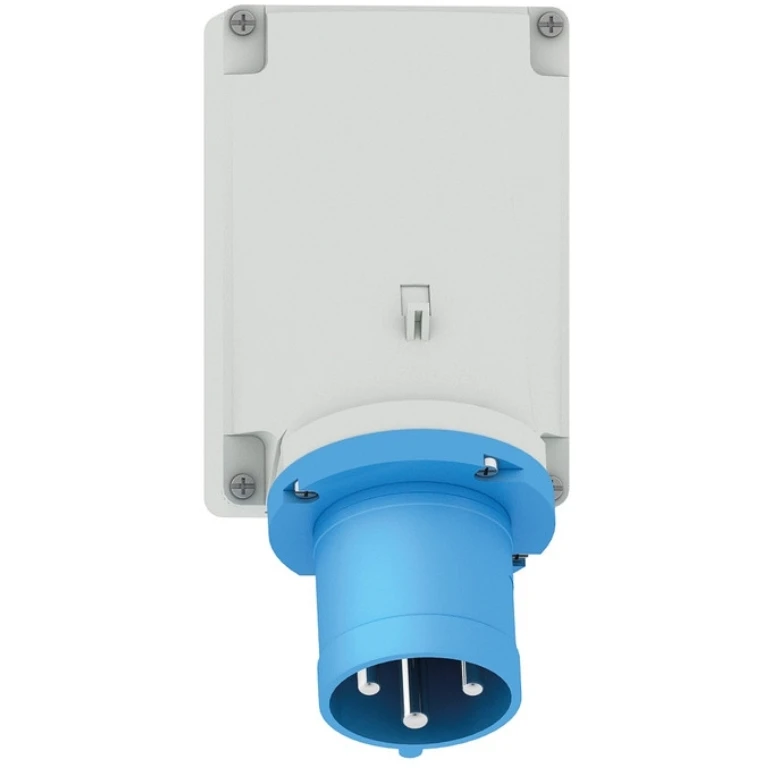

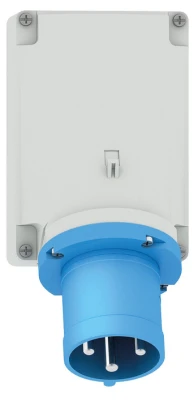

CEENorm Surface Mounting Appliance Inlet 63A 230V 3 Pole IP44
CEENorm Surface Mounting Appliance Inlet 63A 230V 3 Pole IP44
CEENorm Surface Mounting Appliance Inlet 63A 230V 3 Pole IP44 - Image 2
CEENorm Surface Mounting Appliance Inlet 63A 230V 3 Pole IP44 - Image 3
CEENorm Surface Mounting Appliance Inlet 63A 230V 3 Pole IP44 - Image 4

CEENorm Surface Mounting Appliance Inlet 63A 230V 3 Pole IP44

£107.86 Incl. VAT

63A, 230V, 3 Pole, IP44, 6H with screw terminals Surface Mounting Appliance Inlet.Enclosure made of Polycarbonate,The contact carrier is made of high temperature resistant material, the contacts are brass nickel plated.With a maximum conductor size of 6,0 mm,M40 Top Entry and M32 Bottom Entry.The lower part of the housing is rotatable by 180 degree. · · · High self-cleaning effect when the plug pin is inserted and removed reduces the risk of soiling and therefore failure of the plug and socket · · Terminals accept all types of conductors without problem · · Position of earth contact 6 h · · Voltage 200 – 250V

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 24336 Categories: , , , Brand: Product Code: 2500037601

Description

Technical Specifications  Technical Specifications CEE appliance inlet Material Plastic Degree of protection (IP rating) IP44 Surface finish contacts Nickel-plated Construction type Surface mounted plug Identification colour Blue Connection system Screwed terminal Voltage acc. EN 60309-2 230 V (50+60 Hz) blue Angle of plug Angled Contact material CuZn RAL number 5015 Number of poles 3 IEC-amperage 63 A Clock hour position 6 h Amperage acc. UL/CSA (for UL-version) – A Rated frequency – Hz Rated voltage – V Phase inverter No Military model No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
