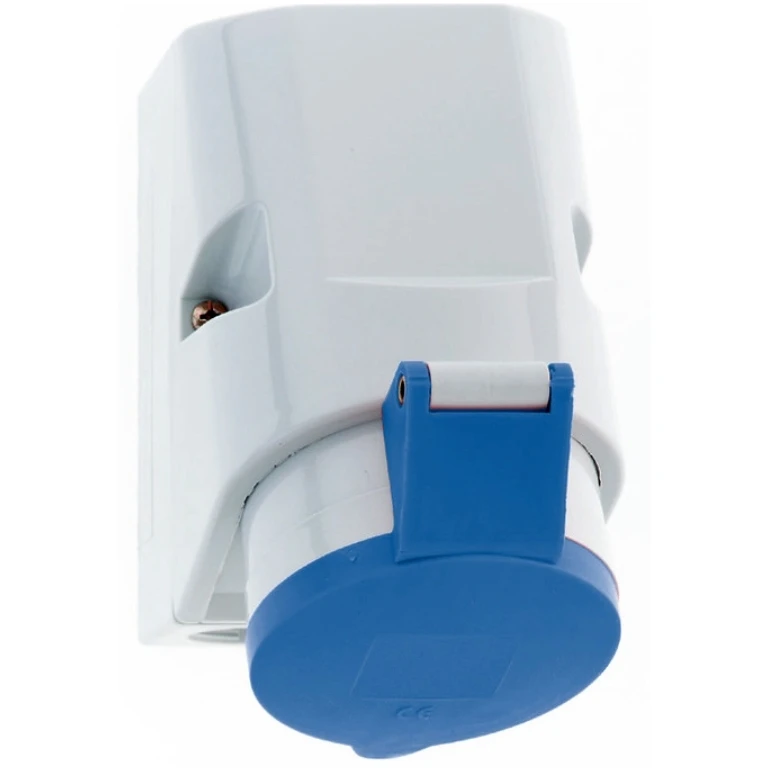

CEENorm Surface Mounting Socket 16A 230V 7 Pole IP44
CEENorm Surface Mounting Socket 16A 230V 7 Pole IP44
CEENorm Surface Mounting Socket 16A 230V 7 Pole IP44 - Image 2
CEENorm Surface Mounting Socket 16A 230V 7 Pole IP44 - Image 3

CEENorm Surface Mounting Socket 16A 230V 7 Pole IP44

£122.46 Incl. VAT

High self-cleaning effect when the plug pin is inserted and removed reduces the risk of soiling and therefore failure of the plug and socket.The contact carrier is made of high temperature resistant material, the contacts are brass nickel plated,With a maximum conductor size of 4,0 mm.The cable entry is one at top open and two at bottom closed,Lower part of housing rotatable by 180mm. · · · Current 16A · · Position of earth contact 9 h · · Voltage 230V · · Frequency 50/60Hz

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 11480 Categories: , , , Brand: Product Code: 2500036245

Description

Technical Specifications  Technical Specifications CEE socket outlet Material Plastic Degree of protection (IP rating) IP44 Surface finish contacts Nickel-plated Identification colour Blue Voltage acc. EN 60309-2 230 V (50+60 Hz) blue Connection system Screwed terminal Cable entry Swivel Contact material CuZn Type of fastening Inner lying mounting RAL number 5015 Number of poles 7 Clock hour position 9 h IEC-amperage 16 A Amperage acc. UL/CSA (for UL-version) – A Insulated mounting Yes Military model No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
