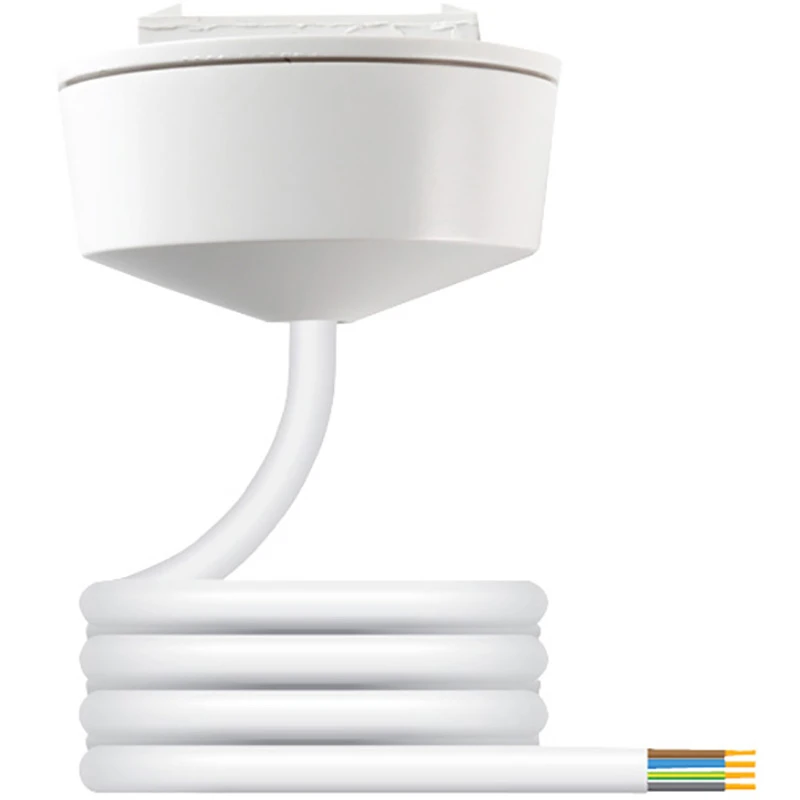

Hager Ceiling Rose 4-Pin 6A Prewired Plugin White PVC - 0.75mm² x 2m
Hager Ceiling Rose 4-Pin 6A Prewired Plugin White PVC - 0.75mm² x 2m
Hager Ceiling Rose 4-Pin 6A Prewired Plugin White PVC - 0.75mm² x 2m - Image 2

Hager Ceiling Rose 4-Pin 6A Prewired Plugin White PVC – 0.75mm² x 2m

£18.42 Incl. VAT

A Ceiling Rose complete with PVC flexible cord to reduce on-site installation time and cost. · · · All leads have barrel crimped ends to eliminate breakage, and minimise on-site cable preparation. · · Cable Length: 2m · · Cable Type: 0.75mm 4 Core PVC Flex · · Number of Pins: 4 · · Current Rating: 6A · · Voltage Rating: 230V · · Dimensions: Diameter 75mm, Depth 51mm · · Weight: 0.267kg · · Colour: White · · Standards: BS 6972, BS 5733

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: CR64AX/2.0 Categories: , , , , , Brand: Product Code: 2500065534

Description

Technical Specifications  Technical Specifications Patch cord for plug-in building installation Conductor end treatment Cable end sleeves Type side 2 Free conductor end Type side 1 Plug Sheath colour White Type of finished cable Device connection cable Housing colour Red Surface finish contacts Untreated Degree of protection (IP rating) IP20 Type of locking Integrated in plug-in connector Cable type H05VV-F Dismantle length 50 mm Pollution degree 2 Cable permanent temperature-resistant to 90 °C Strip length 7 mm Rated current 6 A Rated voltage 240 V Nominal cross sectional area of conductor 0.75 mm² Number of poles 4 Total length 2000 mm Cable diameter 7 mm Halogen free No Mechanical coding Yes · Technical Data Sheet – Click to Download
