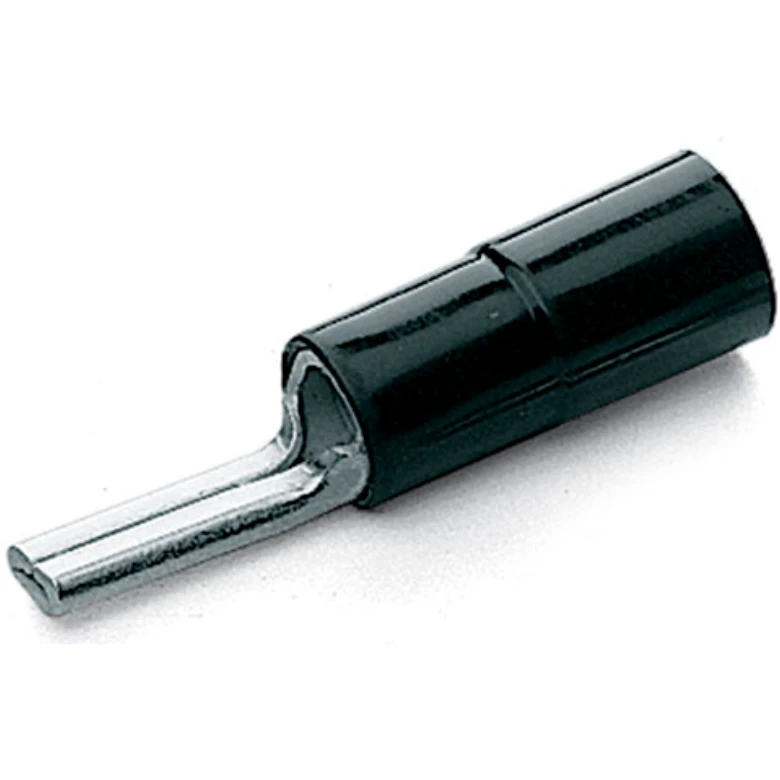

Cembre 10mm² Polyamide Pa6.6 Insulated Pin Terminal 14.5mm Pin Length Black
Cembre 10mm² Polyamide Pa6.6 Insulated Pin Terminal 14.5mm Pin Length Black
Cembre 10mm² Polyamide Pa6.6 Insulated Pin Terminal 14.5mm Pin Length Black - Image 2
Cembre 10mm² Polyamide Pa6.6 Insulated Pin Terminal 14.5mm Pin Length Black - Image 3

Cembre 10mm² Polyamide Pa6.6 Insulated Pin Terminal 14.5mm Pin Length Black

£0.78 Incl. VAT

10mm² Polyamide PA6.6 insulated pin terminal 14.5mm pin length black · · · Insulation sleeve in Polyamide PA6.6 · · Facilitated introduction of the conductor · · -25°C to +115°C Temperature Range · · Electrolytically tin-plated to avoid oxidisation · · Manufactured from electrolytic Copper wire with a purity greater than 99.9% · · inspection hole for checkin conductor · · Tab/Pin Size: 14.5 mm · · Insulation Material: Nylon · · Diameter: 8 mm · · Length Min Max: 35.1 mm

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: ANE2-P12 Categories: , , Brand: Product Code: 2500111907

Description

Technical Specifications  Technical Specifications Solderless copper terminals for copper conductors Sleeve form Short Flange shape Pin shape Material Copper Colour insulation Black Surface protection Tinned Insulation PA Bolt dimension (metric) – Nominal cross section 10 – 10 mm² Max. current (Imax) – A Suitable for insulated varnish No Suitable for fine strand conductors Yes Useful for stranded conductors Yes Reel packaging No Suitable for solid cores No Suitable for round conductors Yes Suitable for high temperatures (to 650 °C) No Suitable for flat conductors No For pull protected connections No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
