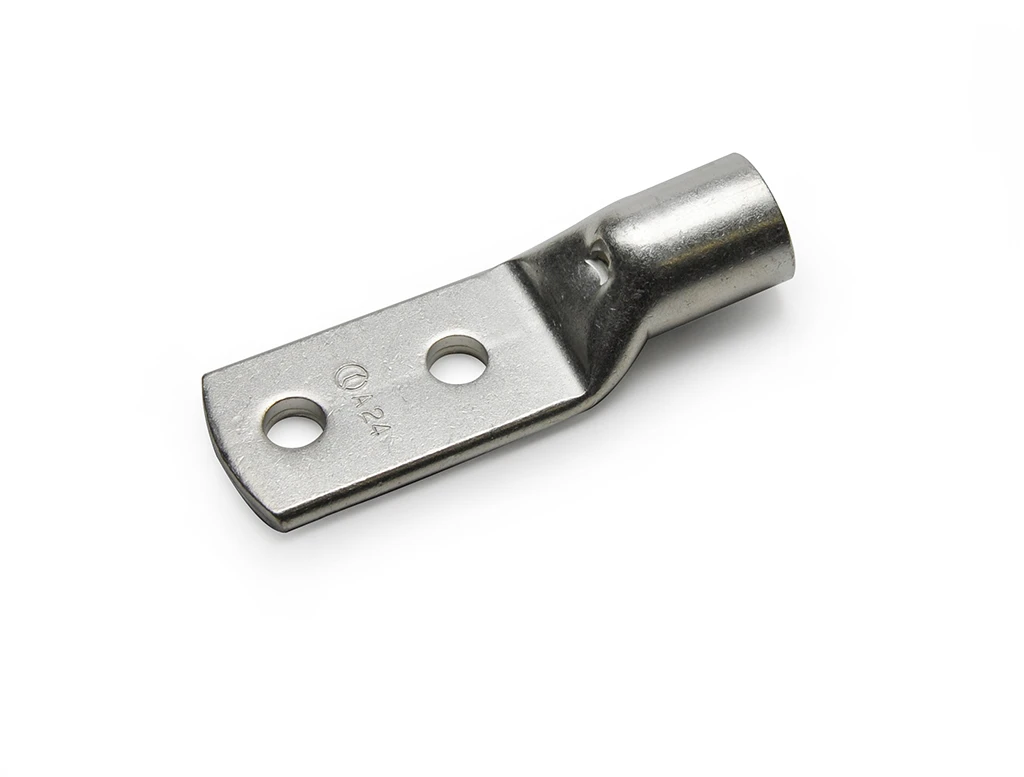

Cembre 300mmsq Copper Tube Crimping Lug With 2 X M16 Stud Fixings At 44.5mm Centres
Cembre 300mmsq Copper Tube Crimping Lug With 2 X M16 Stud Fixings At 44.5mm Centres
Cembre 300mmsq Copper Tube Crimping Lug With 2 X M16 Stud Fixings At 44.5mm Centres - Image 2
Cembre 300mmsq Copper Tube Crimping Lug With 2 X M16 Stud Fixings At 44.5mm Centres - Image 3

Cembre 300mmsq Copper Tube Crimping Lug With 2 X M16 Stud Fixings At 44.5mm Centres

£43.60 Incl. VAT

· · Manufactured from electrolytic Copper strip with a purity greater than 99.9% · · Funnel entry- facilitated introduction of the conductor · · Annealed Material · · Electrolytically tin plated to avoid oxidation; min 3μm · · Operating temperature range: -50°C to + 150°C · · Inspection hole for checking the correct introduction of the conductor

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: A60-2M16 Categories: , , Brand: Product Code: 2501399910

Description

Technical Specifications  Technical Specifications Copper tube crimping lug Material Copper AWG size 600 kcmil Connecting angle 180° (horizontal) Surface protection Tinned Flange shape Ring shape Nominal cross section 300 mm² Number of fixing holes 2 Bolt dimension (metric) 16 Insulated No With sight-hole Yes Slender flange model No
