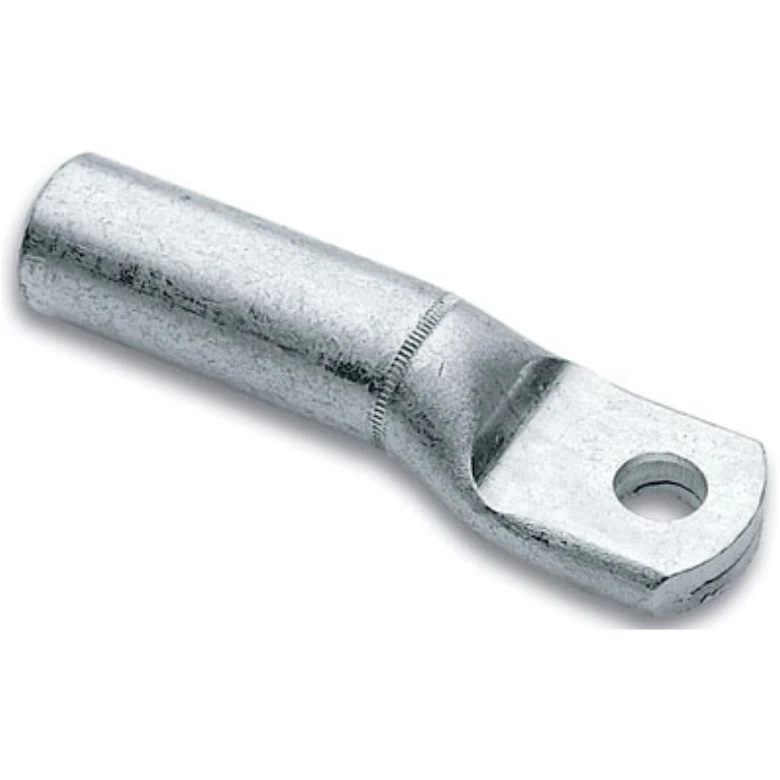

Cembre Alum Lug Connector
Cembre Alum Lug Connector
Cembre Alum Lug Connector - Image 2
Cembre Alum Lug Connector - Image 3

Cembre Alum Lug Connector

£10.50 Incl. VAT

95mm² Aluminium connector with M12 stud · · · Suitable for outdoor use · · Maximum Voltage Rating: 33kV · · Barrels are capped and filled with grease so as to avoid oxidation of the aluminium · · Operating Temperate Range -50°C to +150°C · · Manufactured from Aluminium to form a purity equal or greater than 99.5% · · Designed to accept a variety of conductor forms

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: AA95-M12 Categories: , , Brand: Product Code: 2500314444

Description

Technical Specifications  Technical Specifications Crimp cable lug for aluminium conductors Cross section form Round/sector-shaped Sleeve form Long Code digit – Material Aluminium Bolt dimension (metric) 12 Number of fixing holes 1 St nominal cross section 95 mm² Nominal cross section aluminium, RM/SM 95 – 95 mm² Nominal cross section aluminium, SE 95 – 95 mm² Longitudinal sealed No Suitable for Al/St-cables No
