Cembre ANE12-M8 Lug 50mm2
Cembre ANE12-M8 Lug 50mm2
Cembre ANE12-M8 Lug 50mm2 - Image 2

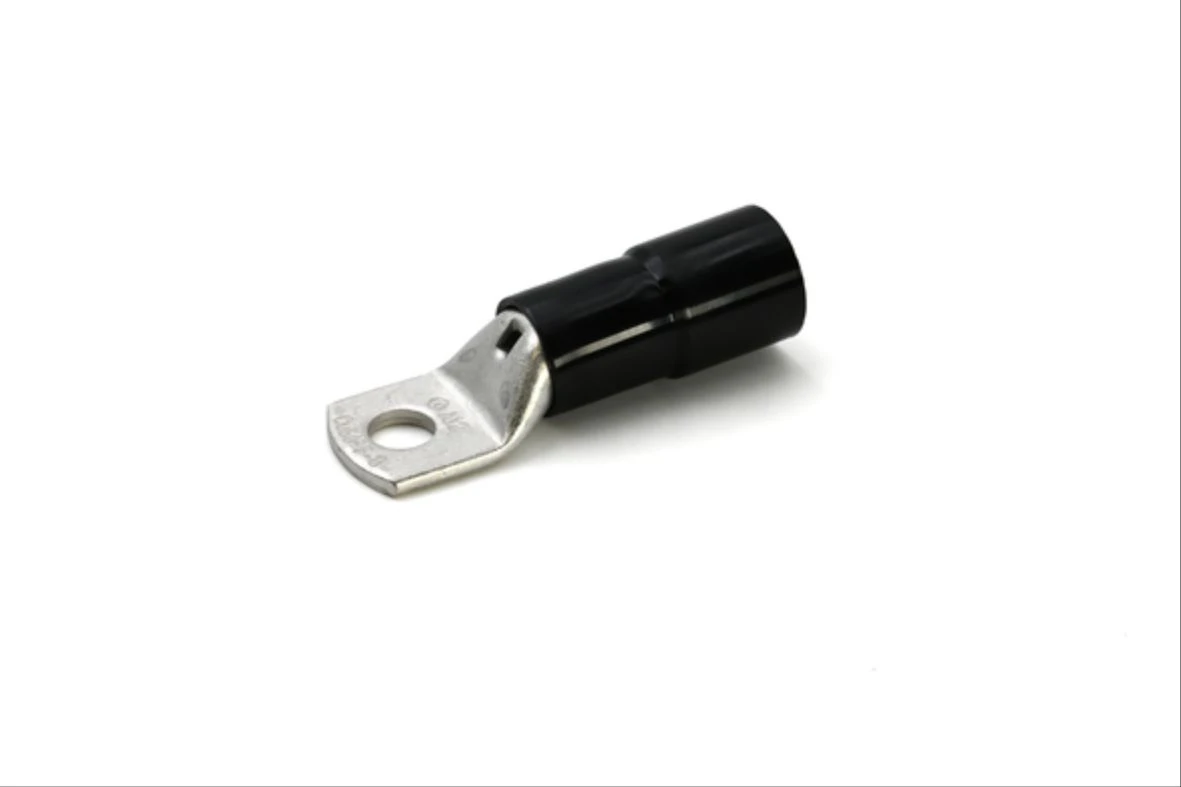

Cembre ANE12-M8 Lug 50mm2 - Image 3

Cembre ANE12-M8 Lug 50mm2

£1.76 Incl. VAT

50mm² Polyamide PA6.6 insulated ring terminal for extra flexible copper conductor M8 stud · · · Insulation sleeve in Polyamide PA6.6 · · Facilitated introduction of the conductor · · -25°C to +115°C Temperature Range · · Electrolytically tin-plated to avoid oxidisation · · Manufactured from electrolytic Copper wire with a purity greater than 99.9% · · inspection hole for checkin conductor

22 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: ANE12-M8 Categories: , , Brand: Part Number: 2500111832

Description

Technical Specifications  Technical Specifications Copper tube crimping lug Connecting angle 180° (horizontal) Colour insulation Black Material Copper Conductor category Class 6 = very flexible Surface protection Tinned AWG size 1 Flange shape Ring shape Bolt dimension (metric) 8 Number of fixing holes 1 Nominal cross section 50 mm² Insulated Yes Slender flange model No With sight-hole Yes · Technical Data Sheet – Click to Download
