Cembre ANE2-M6 Lug 10Mm2
£0.83 Incl. VAT

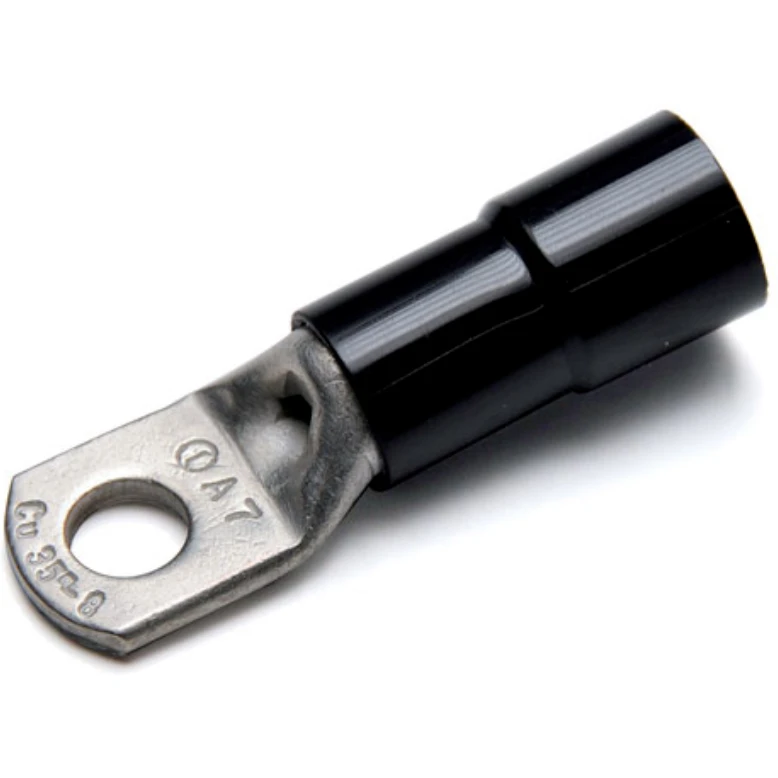

10mm² Polyamide PA6.6 insulated copper tube crimping lug M6 stud black · · · Insulation sleeve in Polyamide PA6.6 · · Facilitated introduction of the conductor · · -25°C to +115°C Temperature Range · · Electrolytically tin-plated to avoid oxidisation · · Manufactured from electrolytic Copper wire with a purity greater than 99.9% · · inspection hole for checkin conductor
Description
Technical Specifications Technical Specifications Copper tube crimping lug Material Copper AWG size 8 Connecting angle 180° (horizontal) Colour insulation Black Surface protection Tinned Flange shape Ring shape Bolt dimension (metric) 6 Nominal cross section 10 mm² Number of fixing holes 1 With sight-hole Yes Slender flange model No Insulated Yes · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
