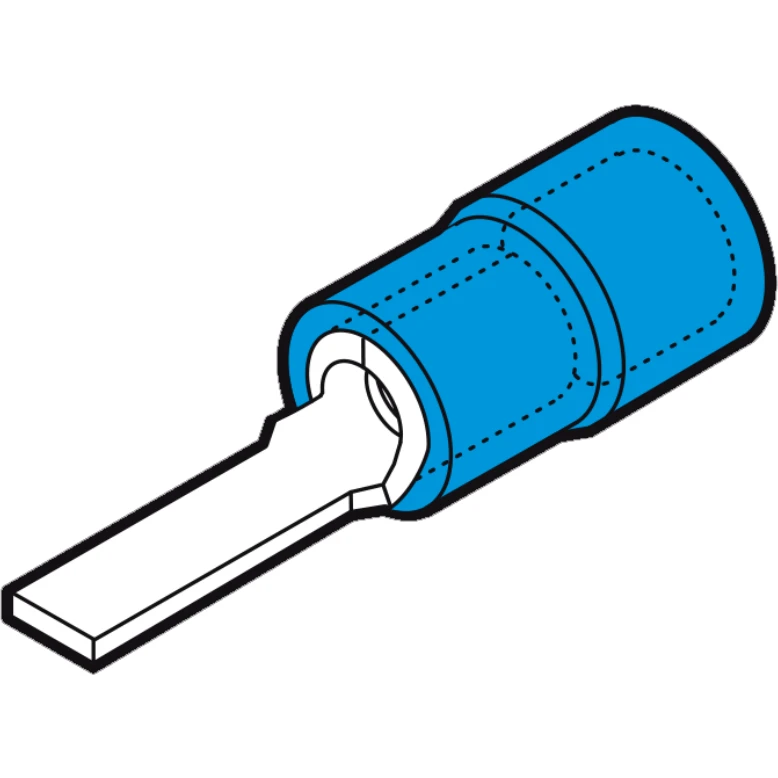

Cembre Blade Terminal Blue
£0.17 Incl. VAT
1.5mm²-2.5mm² Halogen free Polycarbonate insulated blade terminal 2.5mm x 13.3mm blade blue · · · Insulation sleeve in Polycarbonate · · -20°C to +115°C Temperature Range · · Facilited Introduction of the conductor · · Halogen Free · · Electrolytically tin-plated to avoid oxidisation · · Annealed to guarantee optimum ductility
Out of Stock
Description
Technical Specifications Technical Specifications Solderless copper terminals for copper conductors Colour insulation Blue Sleeve form Short Flange shape Pin shape Material Copper Insulation PC Max. current (Imax) – A Surface protection Tinned Nominal cross section 1.5 – 2.5 mm² Bolt dimension (metric) – Reel packaging No Suitable for solid cores Yes For pull protected connections No Useful for stranded conductors Yes Suitable for flat conductors No Suitable for insulated varnish No Suitable for fine strand conductors Yes Suitable for high temperatures (to 650 °C) No Suitable for round conductors Yes
