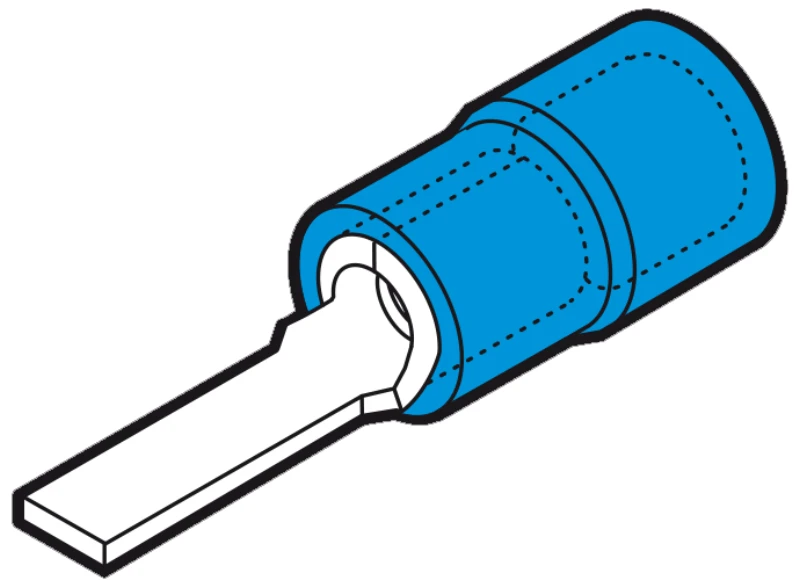

Cembre Blade Terminal Blue
Cembre Blade Terminal Blue
Cembre Blade Terminal Blue - Image 2
Cembre Blade Terminal Blue - Image 3

Cembre Blade Terminal Blue

£0.16 Incl. VAT

1.5mm²-2.5mm² Halogen free Polycarbonate insulated blade terminal 3.5mm x 12.8mm blade blue · · · Insulation sleeve in Polycarbonate · · -20°C to +115°C Temperature Range · · Facilited Introduction of the conductor · · Halogen Free · · Electrolytically tin-plated to avoid oxidisation · · Annealed to guarantee optimum ductility

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: BP-PP12 Categories: , Brand: Product Code: 2500113029

Description

Technical Specifications  Technical Specifications Solderless copper terminals for copper conductors Sleeve form Short Flange shape Pin shape Colour insulation Blue Material Copper Insulation PC Surface protection Tinned Bolt dimension (metric) – Max. current (Imax) – A Nominal cross section 1.5 – 2.5 mm² Suitable for round conductors Yes Suitable for solid cores No Suitable for high temperatures (to 650 °C) No Suitable for flat conductors No Suitable for fine strand conductors Yes Reel packaging No For pull protected connections No Useful for stranded conductors Yes Suitable for insulated varnish No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/221847
