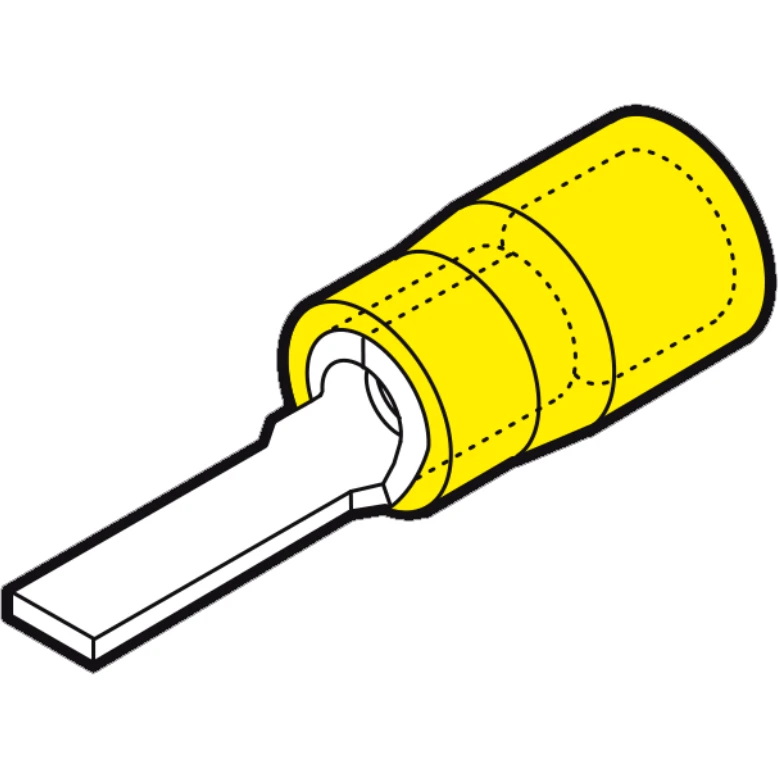

Cembre Blade Terminal Yellow
£0.30 Incl. VAT
4mm²-6mm² Halogen free Polycarbonate insulated blade terminal 2.9mm x 19.1mm blade yellow · · · Insulation sleeve in Polycarbonate · · -20°C to +115°C Temperature Range · · Facilited Introduction of the conductor · · Halogen Free · · Electrolytically tin-plated to avoid oxidisation · · Annealed to guarantee optimum ductility
Description
Technical Specifications Technical Specifications Solderless copper terminals for copper conductors Flange shape Pin shape Sleeve form Short Material Copper Colour insulation Yellow Insulation PC Bolt dimension (metric) – Surface protection Tinned Max. current (Imax) – A Reel packaging No Nominal cross section 4 – 6 mm² For pull protected connections No Suitable for flat conductors No Suitable for high temperatures (to 650 °C) No Suitable for solid cores No Useful for stranded conductors Yes Suitable for fine strand conductors Yes Suitable for insulated varnish No Suitable for round conductors Yes
