Cembre Cable Gland PG42
Cembre Cable Gland PG42
Cembre Cable Gland PG42 - Image 2
Cembre Cable Gland PG42 - Image 3

Cembre Cable Gland PG42

£12.91 Incl. VAT

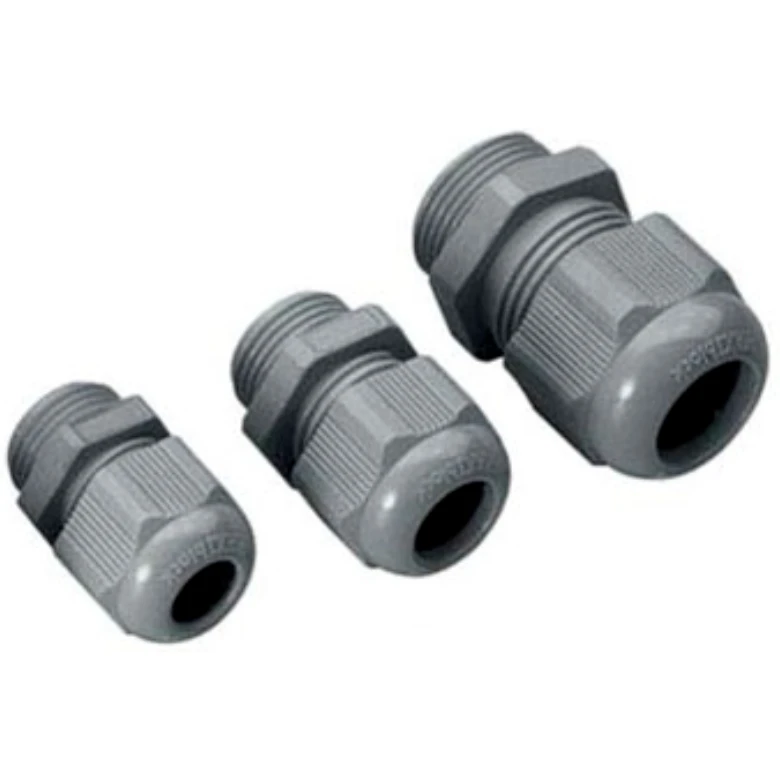

PG42 Polyamide PA6.6 Cable Gland dark grey · · · Polyamide PA6.6 Body · · Self-extingushing Class V2 (UL 94) · · -20°C to +90°C Temperature Range · · IP68 Protection Class · · PG Thread DIN 40 430 · · RAL 7001 Dark Grey · · CE Marking

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1900.42G Categories: , , Brand: Product Code: 2500919421

Description

Technical Specifications  Technical Specifications Cable gland For ATEX classification, Ex-zone gas None For ATEX classification, Ex-zone dust None Material Plastic Model Straight Degree of protection (IP rating) IP68 Thread type PG Type of sealing Sealing ring Material qualifier Polyamide (PA) Surface protection Untreated Nominal thread size metric/PG 42 Colour Dark grey Pitch thread – mm Hexagon angular dimension 60 mm Thread length 14 mm Spanner width 60 mm RAL number 7001 Working temperature -40 – 100 °C Suitable for cable outer diameter 28 – 38 mm Halogen free No Separable (split) screw gland No Snapping in opening No For armoured cable No Flat cable sealing No Glass fibre reinforced No EMC-version No Explosion-tested version No Screened No Bend radius protection/trumpet flare No Multi cable sealing No Locknut included No Shock resistant No With strain relief Yes
