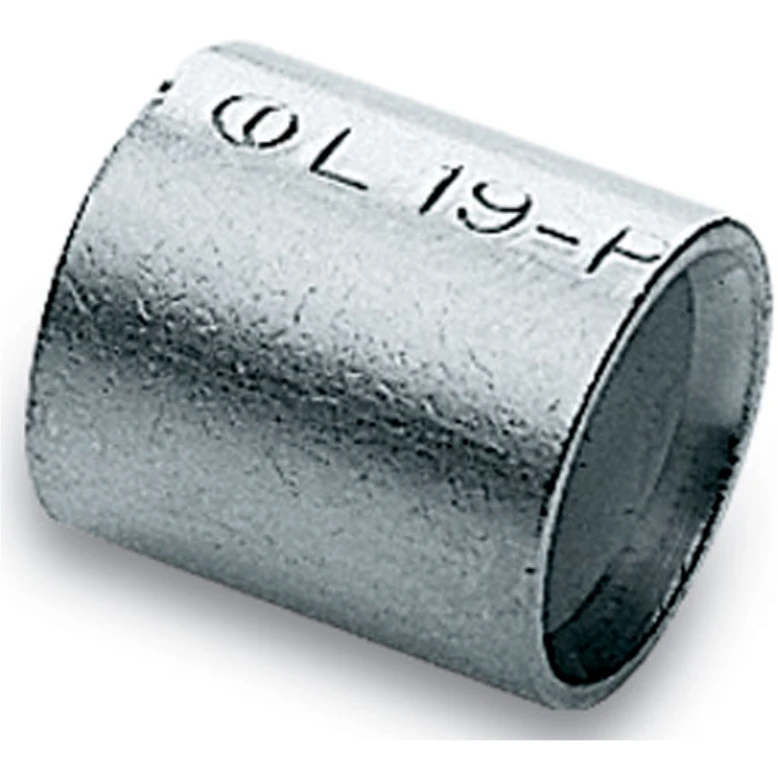

Cembre Copper Through Connector
Cembre Copper Through Connector
Cembre Copper Through Connector - Image 2
Cembre Copper Through Connector - Image 3

Cembre Copper Through Connector

£0.36 Incl. VAT

16mm² Copper tube parallel connector · · · Annealed to guarantee optimum ductility · · Facilitated introduction of the conductor · · -50°C to +150°C Temperature Range · · Maximum Voltage Rating: 11kV · · Manufactured from electrolytic Copper tube with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: L3-P Brand: Product Code: 2500111351

Description

Technical Specifications  Technical Specifications Crimp splices for copper conductor Insulation None Voltage row Up to 600 V Sleeve form Short Type of connection Parallel connector Material Copper Surface protection Tinned Model Standard version Nominal current – A Number of branches – Nominal cross section 16 – 16 mm² Oil stop/centre bar No Suitable for solid cores No For pull protected connections No Suitable for fine strand conductors Yes Suitable for flat conductors No Suitable for round conductors Yes Useful for stranded conductors Yes Suitable for insulated varnish No Suitable for high temperatures (to 650 °C) No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
