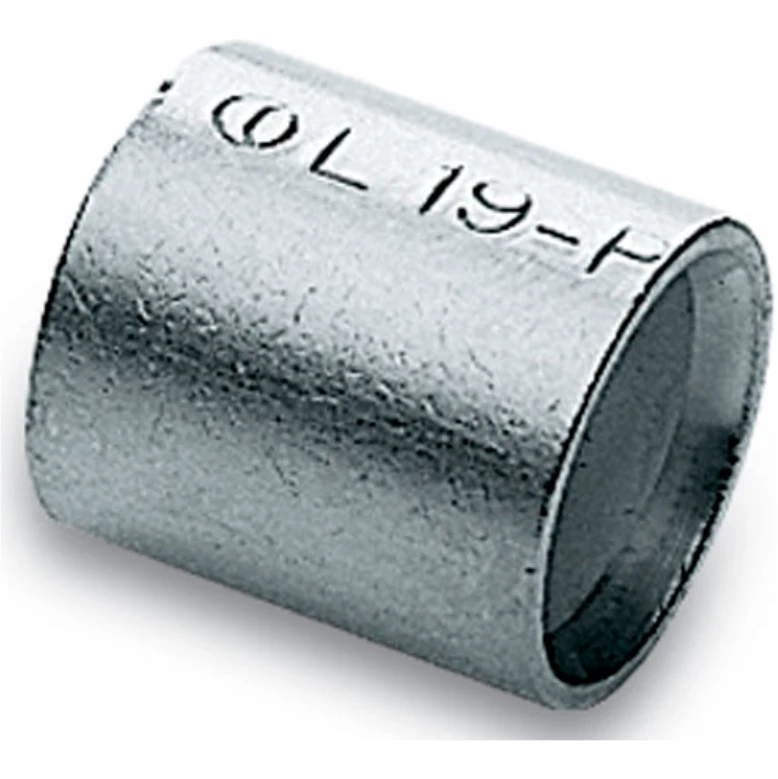

Cembre Copper Through Connector
£0.48 Incl. VAT
25mm² Copper tube parallel connector · · · Annealed to guarantee optimum ductility · · Facilitated introduction of the conductor · · -50°C to +150°C Temperature Range · · Maximum Voltage Rating: 11kV · · Manufactured from electrolytic Copper tube with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation
Description
Technical Specifications Technical Specifications Crimp splices for copper conductor Voltage row Up to 600 V Insulation None Sleeve form Short Material Copper Type of connection Parallel connector Surface protection Tinned Model Standard version Number of branches – Nominal current – A For pull protected connections No Nominal cross section 25 – 25 mm² Suitable for solid cores No Oil stop/centre bar No Suitable for fine strand conductors Yes Suitable for insulated varnish No Suitable for high temperatures (to 650 °C) No Suitable for flat conductors No Useful for stranded conductors Yes Suitable for round conductors Yes · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
