Cembre Copper Through Connector
£70.79 Incl. VAT

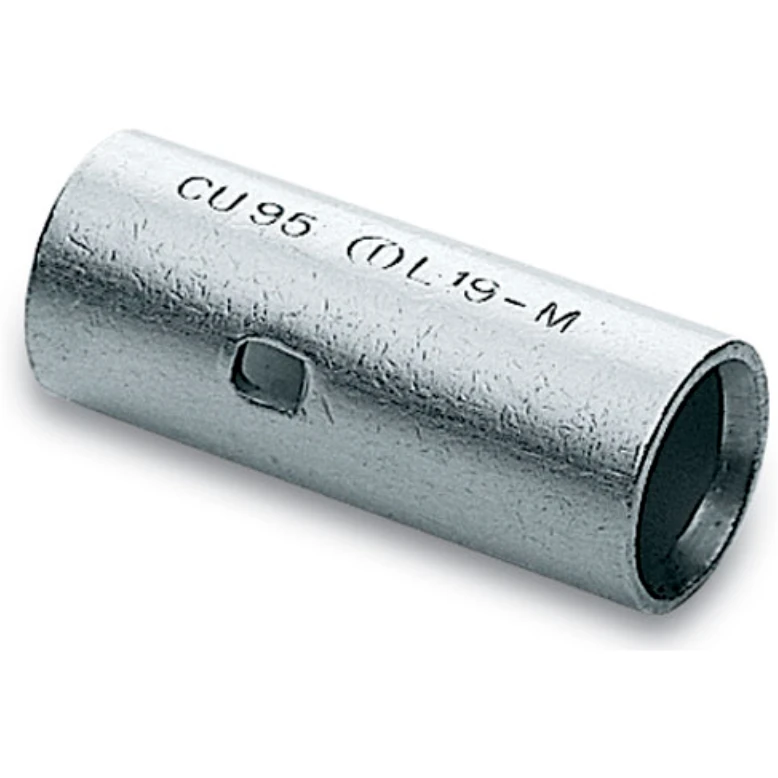

630mm² Copper tube through connector · · · Annealed to guarantee optimum ductility · · Facilitated introduction of the conductor · · -50°C to +150°C Temperature Range · · Maximum Voltage Rating: 11kV · · Manufactured from electrolytic Copper tube with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation
Out of Stock
Description
Technical Specifications Technical Specifications Crimp splices for copper conductor Insulation None Voltage row Up to 600 V Material Copper Sleeve form Long Type of connection Percussion connector Model Standard version Surface protection Tinned Number of branches – Nominal cross section 500 – 630 mm² Nominal current – A Oil stop/centre bar Yes For pull protected connections No Suitable for solid cores No Suitable for fine strand conductors Yes Suitable for flat conductors No Suitable for insulated varnish No Suitable for high temperatures (to 650 °C) No Suitable for round conductors Yes Useful for stranded conductors Yes · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
