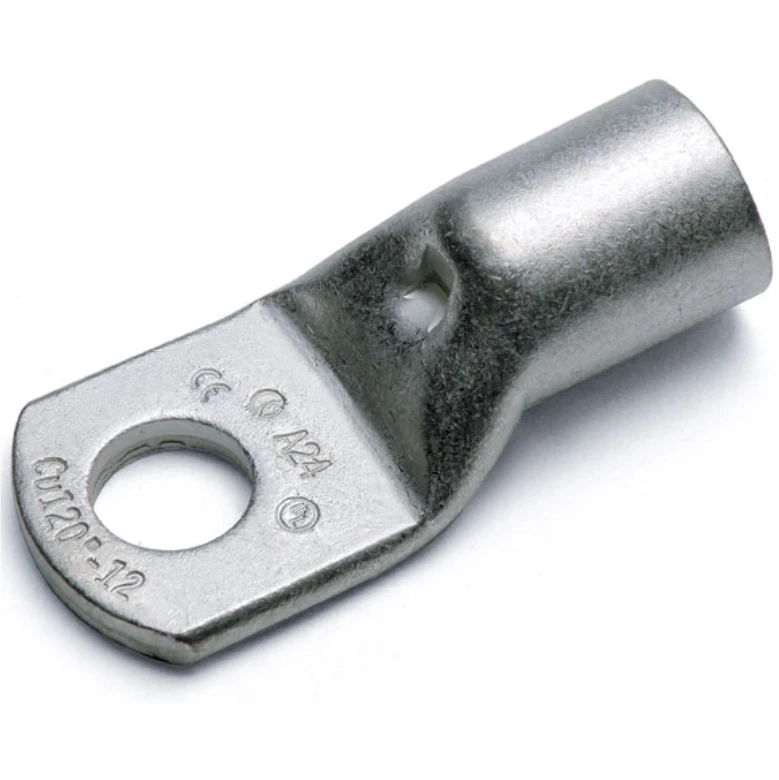

Cembre Copper Tube Crimp Lug
Cembre Copper Tube Crimp Lug
Cembre Copper Tube Crimp Lug - Image 2

Cembre Copper Tube Crimp Lug

£59.76 Incl. VAT

630mm² Copper tube crimping lug M10 stud · · · Annealed to guarantee optimum ductility · · Insulation sleeve form to allow easy introduction of the conductor · · Maximum Voltage Rating: 11kV · · Operating Temperate Range -50°C to +150°C · · Manufactured from electrolytic Copper tube with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: A120-M10 Categories: , , Brand: Product Code: 2501001041

Description

Technical Specifications  Technical Specifications Copper tube crimping lug Material Copper Connecting angle 180° (horizontal) Flange shape Ring shape Surface protection Tinned Number of fixing holes 1 Nominal cross section 630 mm² Bolt dimension (metric) 10 Insulated No With sight-hole Yes Slender flange model No
