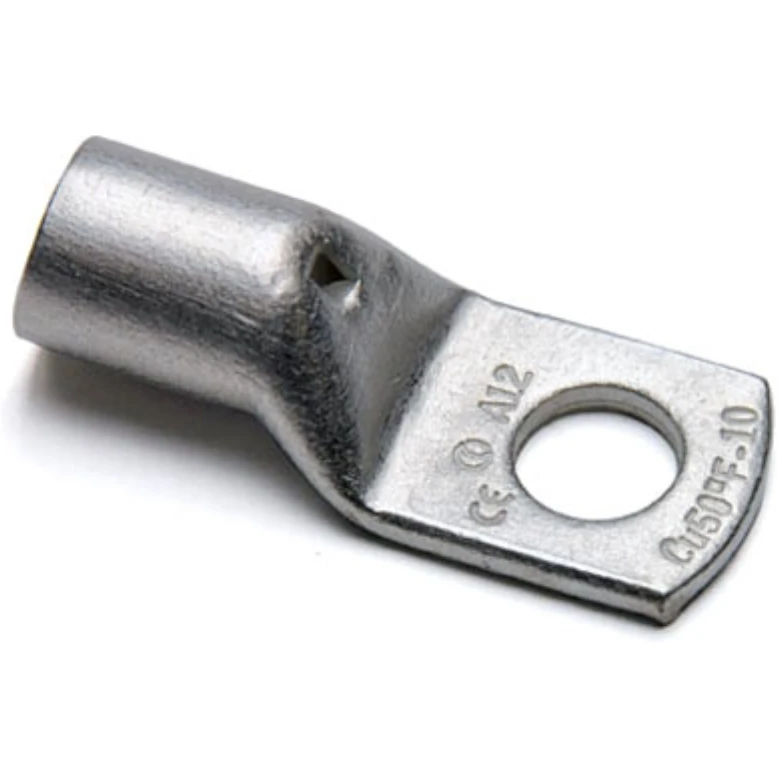

Cembre Copper Tube Crimp Lug
Cembre Copper Tube Crimp Lug
Cembre Copper Tube Crimp Lug - Image 2
Cembre Copper Tube Crimp Lug - Image 3

Cembre Copper Tube Crimp Lug

£1.50 Incl. VAT

35mm² Copper tube crimping lug for extra flexible copper conductor M10 stud · · · Annealed to guarantee optimum ductility · · Insulation sleeve form to allow easy introduction of the conductor · · Maximum Voltage Rating: 11kV · · Operating Temperate Range -50°C to +150°C · · Manufactured from electrolytic Copper tube with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation · · Tab/Pin Size: 21 mm · · Diameter: 9.3 mm · · Length Min Max: 44.5 mm · · Width: 18.5 mm

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: A9-M10 Categories: , , Brand: Product Code: 2500005289

Description

Technical Specifications  Technical Specifications Copper tube crimping lug Material Copper AWG size 2 Surface protection Tinned Connecting angle 180° (horizontal) Flange shape Ring shape Number of fixing holes 1 Nominal cross section 35 mm² Bolt dimension (metric) 10 Slender flange model No With sight-hole Yes Insulated No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/573502
