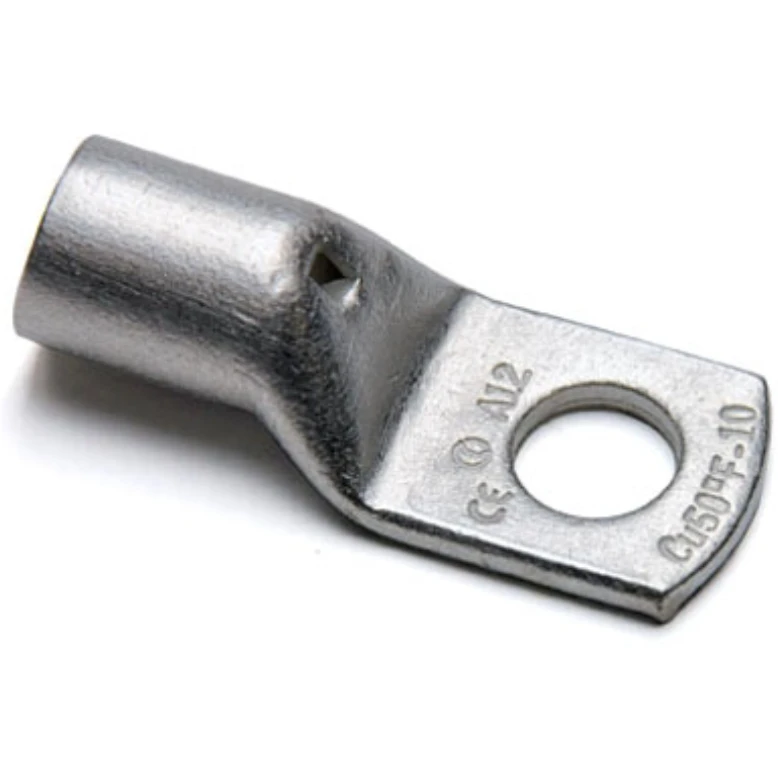

Cembre Copper Tube Crimp Lug
£10.64 Incl. VAT
185mm² Copper tube crimping lug for extra flexible copper conductor M10 stud · · · Annealed to guarantee optimum ductility · · Insulation sleeve form to allow easy introduction of the conductor · · Maximum Voltage Rating: 11kV · · Operating Temperate Range -50°C to +150°C · · Manufactured from electrolytic Copper tube with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation
Out of Stock
Description
Technical Specifications Technical Specifications Copper tube crimping lug AWG size 350 kcmil Material Copper Connecting angle 180° (horizontal) Surface protection Tinned Bolt dimension (metric) 10 Number of fixing holes 1 Flange shape Ring shape With sight-hole Yes Nominal cross section 185 mm² Insulated No Slender flange model No
