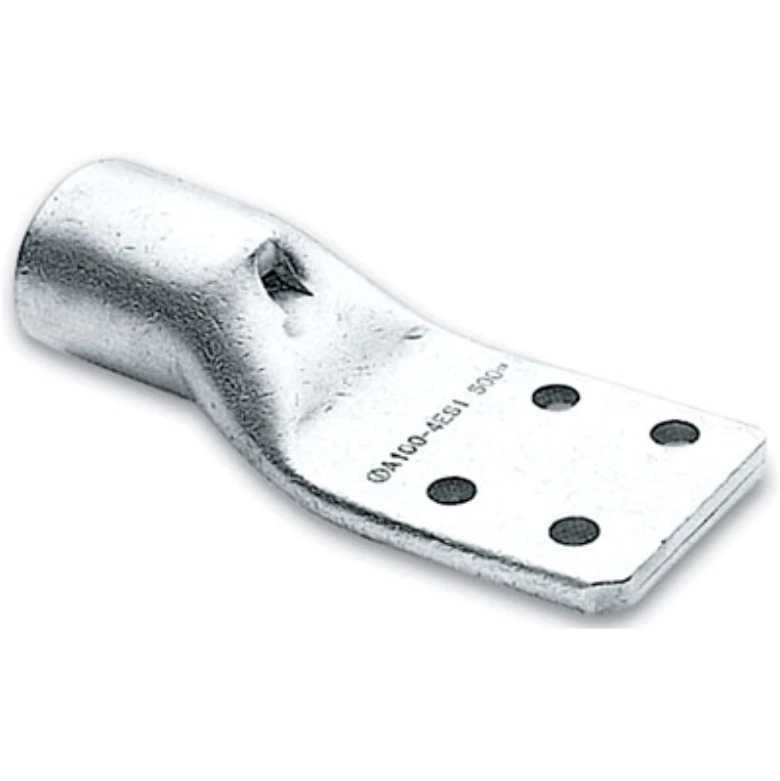

Cembre Copper Tube Crimp Lug
£42.17 Incl. VAT
185mm² Copper tube crimping lug with 4-ESI fixing · · · Annealed to guarantee optimum ductility · · Insulation sleeve form to allow easy introduction of the conductor · · Maximum Voltage Rating: 11kV · · Operating Temperate Range -50°C to +150°C · · Manufactured from electrolytic Copper tube with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation · · Four hole stud fixing in accordance with EA specifications
Description
Technical Specifications Technical Specifications Copper tube crimping lug Material Copper Flange shape Special shape Connecting angle 180° (horizontal) Surface protection Tinned Bolt dimension (metric) 8 Number of fixing holes 4 Insulated No Nominal cross section 185 mm² With sight-hole Yes Slender flange model No
