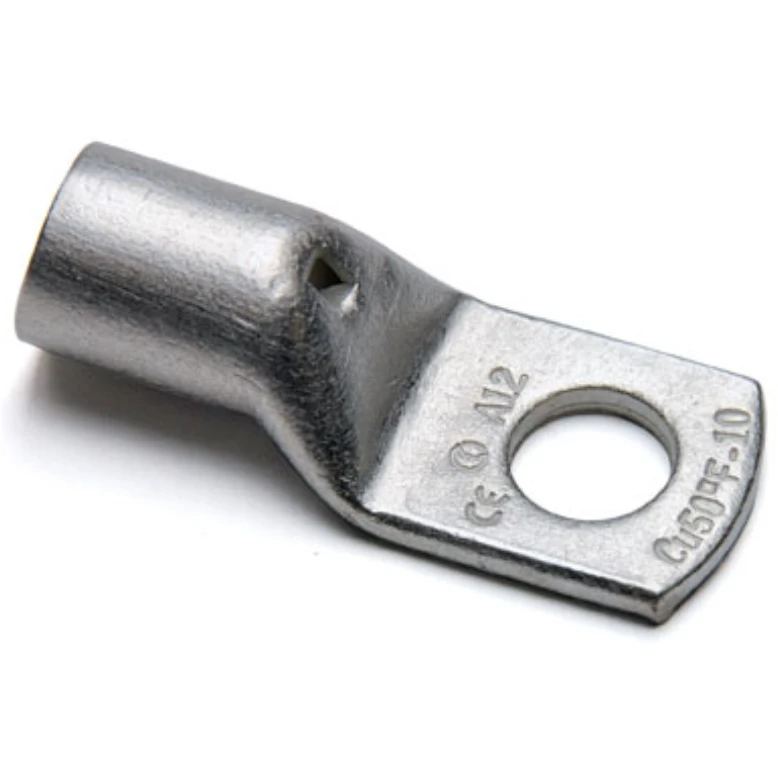

Cembre Copper Tube Crimp Lug
Cembre Copper Tube Crimp Lug
Cembre Copper Tube Crimp Lug - Image 2
Cembre Copper Tube Crimp Lug - Image 3

Cembre Copper Tube Crimp Lug

£2.02 Incl. VAT

50mm² Copper tube crimping lug for extra flexible copper conductor M8 stud · · · Annealed to guarantee optimum ductility · · Insulation sleeve form to allow easy introduction of the conductor · · Maximum Voltage Rating: 11kV · · Operating Temperate Range -50°C to +150°C · · Manufactured from electrolytic Copper tube with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation · · Tab/Pin Size: 17 mm · · Diameter: 8 mm · · Length Min Max: 42.5 mm · · Width: 19.3 mm

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: A12-M8 Brand: Product Code: 2500005341

Description

Technical Specifications  Technical Specifications Copper tube crimping lug Material Copper Connecting angle 180° (horizontal) Surface protection Tinned AWG size 1 Nominal cross section 50 mm² Flange shape Ring shape Bolt dimension (metric) 8 Number of fixing holes 1 With sight-hole Yes Insulated No Slender flange model No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/573505
