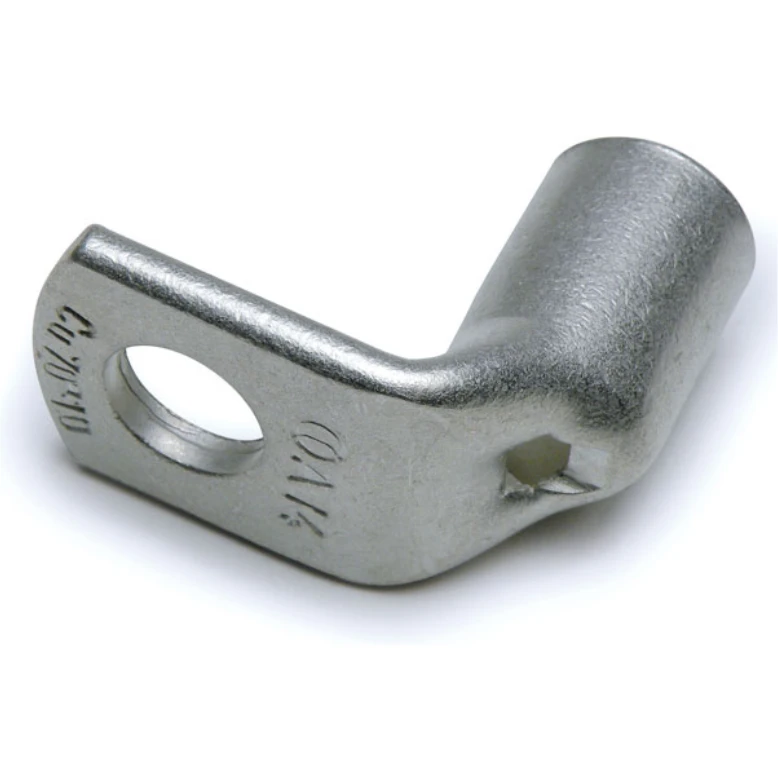

Cembre Copper Tube Crimp Lug
£4.10 Incl. VAT
50mm² Copper tube crimping lug with palm angled at 90 degrees M8 stud · · · Manufactured from electrolytic Copper wire with a purity greater than 99.9% · · Annealed Material · · Insulation sleeveform to allow easy introduction of the condutor · · Electrolytically tin plated to avoid oxidation · · -50°C to +150°C Temperature Range · · Angled Lugs
Description
Technical Specifications Technical Specifications Copper tube crimping lug Material Copper AWG size 1 Connecting angle 90° Surface protection Tinned Flange shape Ring shape Bolt dimension (metric) 8 Nominal cross section 50 mm² Number of fixing holes 1 Slender flange model No With sight-hole Yes Insulated No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
