Cembre Fork Terminal Blue

£0.23 Incl. VAT

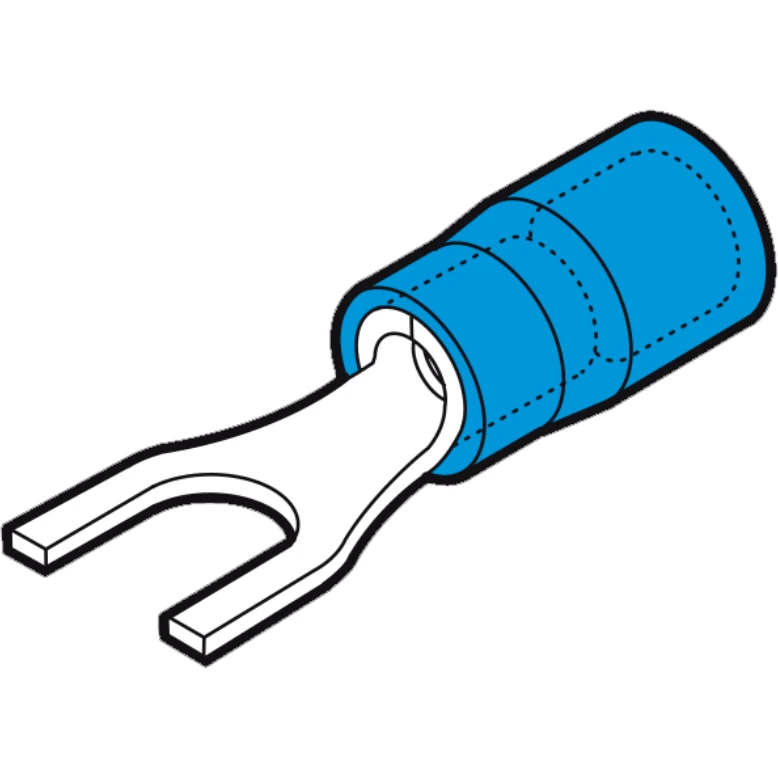

1.5mm²-2.5mm² Halogen free Polycarbonate insulated fork terminal 3.2mm fork width blue · · · Insulation sleeve in Polycarbonate · · -20°C to +115°C Temperature Range · · Facilited Introduction of the conductor · · Halogen Free · · Electrolytically tin-plated to avoid oxidisation · · Annealed to guarantee optimum ductility

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: BP-U3 Brand: Product Code: 2500112659

Description

Technical Specifications  Technical Specifications Solderless copper terminals for copper conductors Colour insulation Blue Sleeve form Short Flange shape Fork shape Material Copper Surface protection Tinned Insulation PC Max. current (Imax) – A Bolt dimension (metric) 3 Suitable for solid cores No Nominal cross section 1.5 – 2.5 mm² Reel packaging No Suitable for fine strand conductors Yes Useful for stranded conductors Yes For pull protected connections No Suitable for round conductors Yes Suitable for high temperatures (to 650 °C) No Suitable for insulated varnish No Suitable for flat conductors No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
