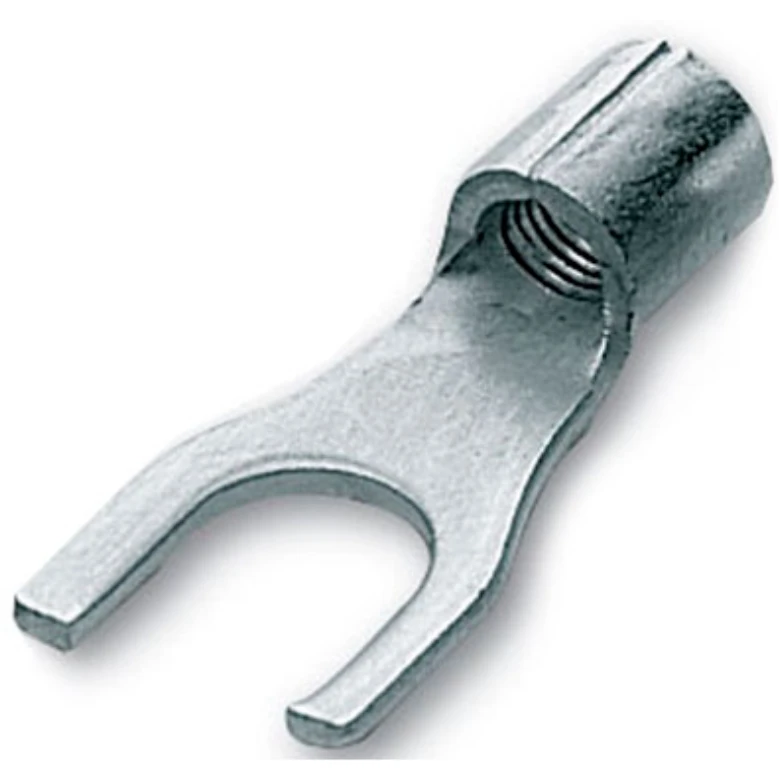

Cembre Fork Terminal Brazed Seam
£0.34 Incl. VAT
4mm²-6mm² Uninsulated brazed seam fork terminal 5.3mm fork width · · · Annealed to guarantee optimum ductility · · -50°C to +150°C Temperature Range · · Manufactured from electrolytic wire witth a purity greater than 99.9% · · Brased Seam · · Suitable for indoor use only · · Electrolytically tin-plated to avoid oxidisation
Out of Stock
Description
Technical Specifications Technical Specifications Solderless copper terminals for copper conductors Insulation None Sleeve form Short Flange shape Fork shape Material Copper Bolt dimension (metric) 5 Surface protection Tinned Max. current (Imax) – A Nominal cross section 4 – 6 mm² Suitable for solid cores Yes Useful for stranded conductors Yes For pull protected connections No Reel packaging No Suitable for flat conductors No Suitable for high temperatures (to 650 °C) No Suitable for fine strand conductors Yes Suitable for round conductors Yes Suitable for insulated varnish No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
