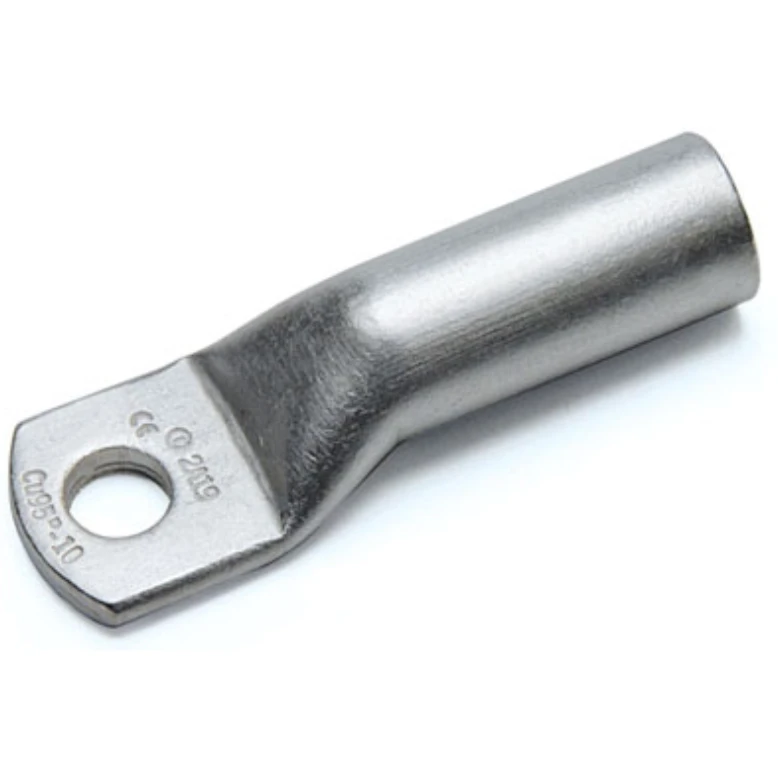

Cembre HD Copper Tube Terminal
£19.20 Incl. VAT
185mm² Heavy duty copper tube crimping lug with double length barrel M16 stud · · · Annealed to guarantee optimum ductility · · Facilitated introduction of the conductor · · -50°C to +150°C Temperature Range · · Maximum Voltage Rating: 33kV · · Manufactured from electrolytic Copper tube with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation
Description
Technical Specifications Technical Specifications Copper tube crimping lug Material Copper AWG size 300 kcmil Connecting angle 180° (horizontal) Surface protection Tinned Flange shape Ring shape Bolt dimension (metric) 16 Nominal cross section 185 mm² Number of fixing holes 1 With sight-hole No Insulated No Slender flange model No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
