Cembre HD Copper Tube Terminal
£3.80 Incl. VAT

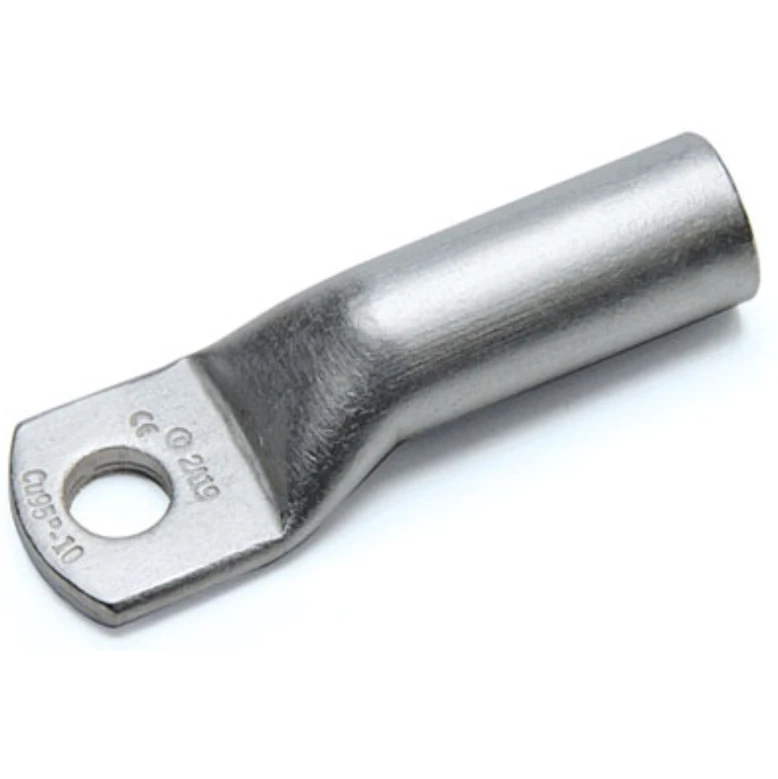

50mm² Heavy duty copper tube crimping lug with double length barrel M16 stud · · · Annealed to guarantee optimum ductility · · Facilitated introduction of the conductor · · -50°C to +150°C Temperature Range · · Maximum Voltage Rating: 33kV · · Manufactured from electrolytic Copper tube with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation
Description
Technical Specifications Technical Specifications Copper tube crimping lug Connecting angle 180° (horizontal) Material Copper Surface protection Tinned AWG size 1 Number of fixing holes 1 Flange shape Ring shape Bolt dimension (metric) 16 Nominal cross section 50 mm² Slender flange model No With sight-hole No Insulated No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
