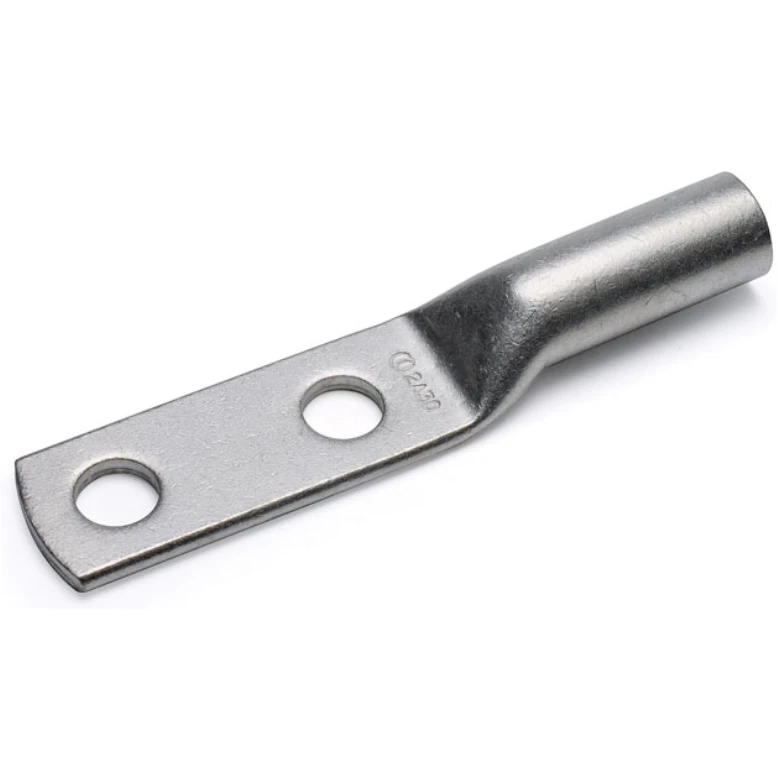

Cembre HV Copper Connector
£29.88 Incl. VAT
95mm² S -100mm² S High voltage copper terminal 2 x M14 studs at 44.5mm centres · · · Annealed to guarantee optimum ductility · · -50°C to 150°C Temperature Range · · Manufactured from electrolytic Copper tube with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation · · Maximum Voltage Rating: 33kV · · Suitable for ourtdoor application
Description
Technical Specifications Technical Specifications Copper tube crimping lug Material Copper Connecting angle 180° (horizontal) Flange shape Ring shape Surface protection Tinned Number of fixing holes 2 Nominal cross section 95 mm² With sight-hole No Bolt dimension (metric) 14 Slender flange model No Insulated No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
