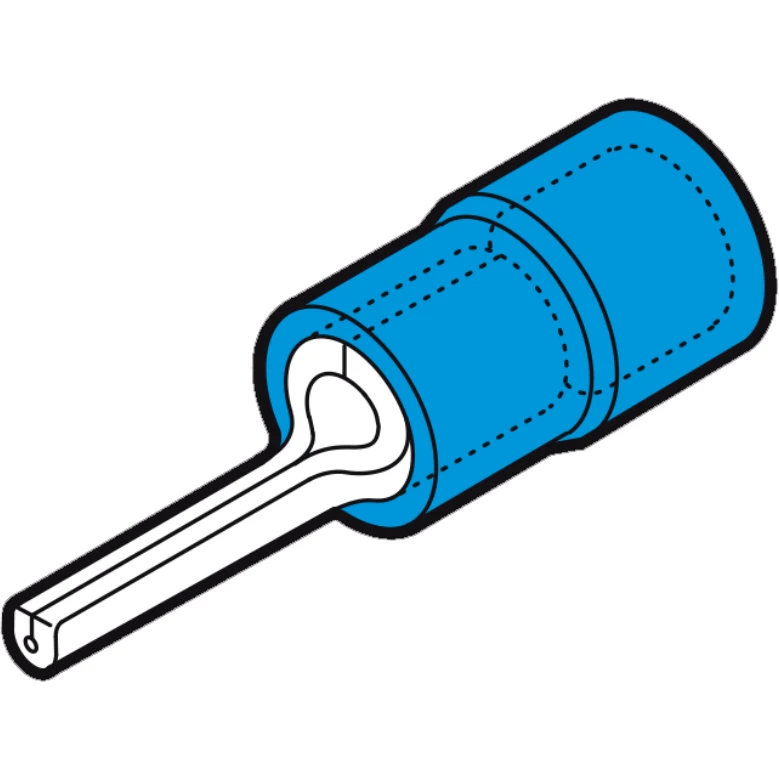

Cembre Pin Terminal Blue
Cembre Pin Terminal Blue
Cembre Pin Terminal Blue - Image 2
Cembre Pin Terminal Blue - Image 3
Cembre Pin Terminal Blue - Image 4

Cembre Pin Terminal Blue

£0.10 Incl. VAT

1.5mm²-2.5mm² PVC insulated pin terminal 8mm pin length blue · · · PVC insulation · · -20°C to +80°C Temperature Range · · Manufactured from Electrolytic Copper Wire with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation · · Annealed to guarantee optimum ductility · · Facilited Introduction of the conductor

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: BF-P8 Categories: , Brand: Product Code: 2500221892

Description

Technical Specifications  Technical Specifications Solderless copper terminals for copper conductors Sleeve form Short Flange shape Pin shape Colour insulation Blue Material Copper Insulation Polyvinyl chloride (PVC) Max. current (Imax) – A Surface protection Tinned Nominal cross section 1.5 – 2.5 mm² Bolt dimension (metric) – For pull protected connections No Reel packaging No Suitable for fine strand conductors Yes Suitable for solid cores No Suitable for insulated varnish No Suitable for round conductors Yes Useful for stranded conductors Yes Suitable for high temperatures (to 650 °C) No Suitable for flat conductors No
