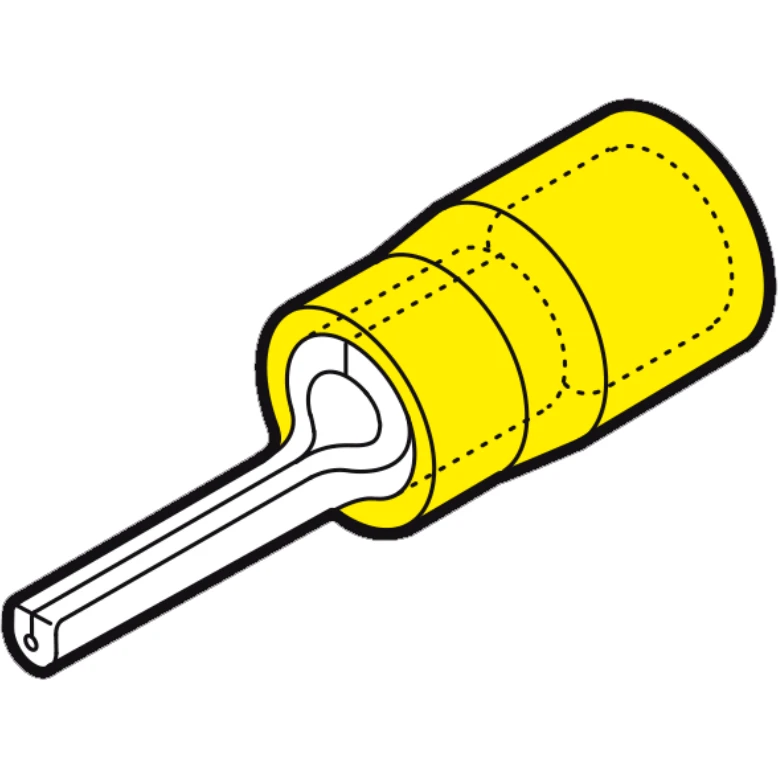

Cembre Pin Terminal Yellow
Cembre Pin Terminal Yellow
Cembre Pin Terminal Yellow - Image 2
Cembre Pin Terminal Yellow - Image 3
Cembre Pin Terminal Yellow - Image 4

Cembre Pin Terminal Yellow

£0.28 Incl. VAT

4mm²-6mm² Halogen free Polycarbonate insulated pin terminal 10.4mm pin length yellow · · · Insulation sleeve in Polycarbonate · · -20°C to +115°C Temperature Range · · Facilited Introduction of the conductor · · Halogen Free · · Electrolytically tin-plated to avoid oxidisation · · Annealed to guarantee optimum ductility

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: GP-P10 Brand: Product Code: 2500113580

Description

Technical Specifications  Technical Specifications Solderless copper terminals for copper conductors Sleeve form Short Flange shape Pin shape Colour insulation Yellow Material Copper Surface protection Tinned Insulation PC Bolt dimension (metric) – Max. current (Imax) – A For pull protected connections No Nominal cross section 4 – 6 mm² Reel packaging No Suitable for solid cores No Useful for stranded conductors Yes Suitable for high temperatures (to 650 °C) No Suitable for insulated varnish No Suitable for fine strand conductors Yes Suitable for flat conductors No Suitable for round conductors Yes · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
