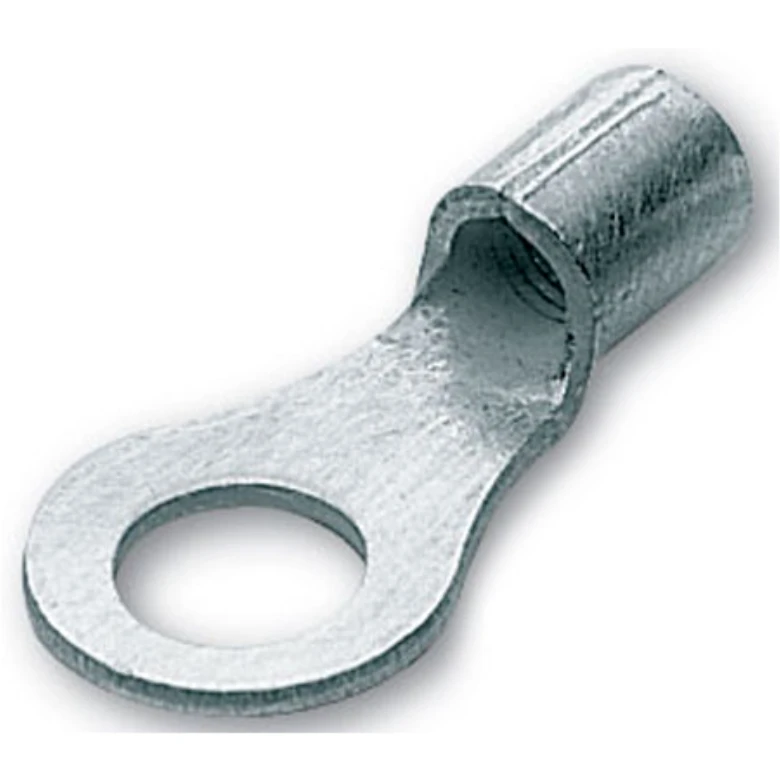

Cembre Ring Terminal Brazed Seam
£0.20 Incl. VAT
0.25mm²-1.25mm² Uninsulated brazed seam ring terminal M6 stud · · · Annealed to guarantee optimum ductility · · -50°C to +150°C Temperature Range · · Manufactured from electrolytic wire witth a purity greater than 99.9% · · Brased Seam · · Suitable for indoor use only · · Electrolytically tin-plated to avoid oxidisation
Description
Technical Specifications Technical Specifications Solderless copper terminals for copper conductors Insulation None Sleeve form Short Material Copper Surface protection Tinned Max. current (Imax) – A Bolt dimension (metric) 6 Flange shape Ring shape Suitable for solid cores No Nominal cross section 0.25 – 1.5 mm² Reel packaging No For pull protected connections No Suitable for insulated varnish No Useful for stranded conductors Yes Suitable for high temperatures (to 650 °C) No Suitable for round conductors Yes Suitable for flat conductors No Suitable for fine strand conductors Yes · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
