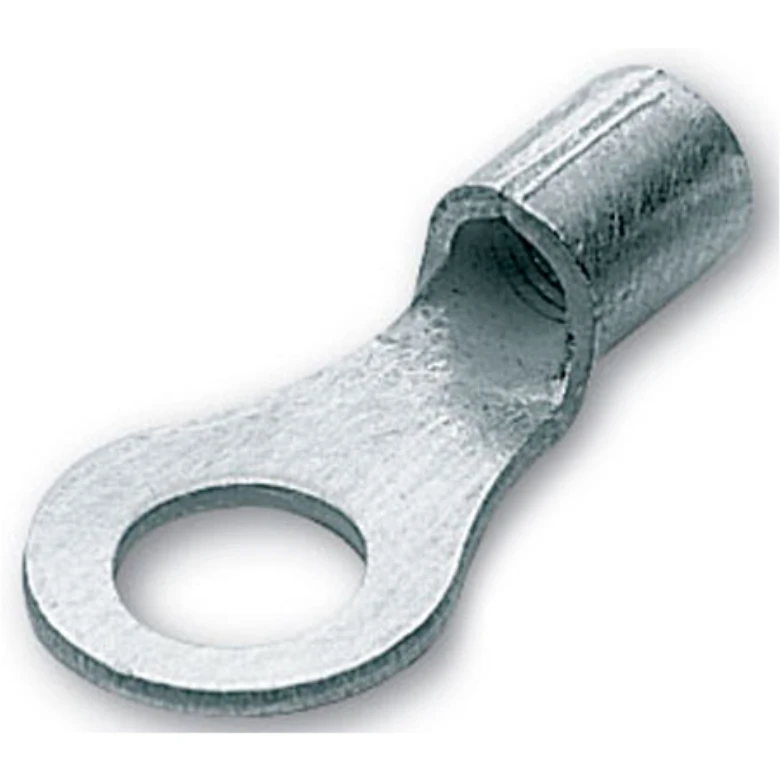

Cembre Ring Terminal Brazed Seam
Cembre Ring Terminal Brazed Seam
Cembre Ring Terminal Brazed Seam - Image 2
Cembre Ring Terminal Brazed Seam - Image 3

Cembre Ring Terminal Brazed Seam

£0.20 Incl. VAT

1.5mm²-2.5mm² Uninsulated brazed seam ring terminal M8 stud · · · Annealed to guarantee optimum ductility · · -50°C to +150°C Temperature Range · · Manufactured from electrolytic wire witth a purity greater than 99.9% · · Brased Seam · · Suitable for indoor use only · · Electrolytically tin-plated to avoid oxidisation

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: S2.5-M8 Brand: Product Code: 2500114324

Description

Technical Specifications  Technical Specifications Solderless copper terminals for copper conductors Insulation None Sleeve form Short Material Copper Surface protection Tinned Flange shape Ring shape Bolt dimension (metric) 8 Max. current (Imax) – A Suitable for high temperatures (to 650 °C) No Nominal cross section 1.5 – 2.5 mm² Suitable for round conductors Yes Suitable for fine strand conductors Yes Suitable for insulated varnish No Suitable for solid cores Yes Reel packaging No For pull protected connections No Suitable for flat conductors No Useful for stranded conductors Yes · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
