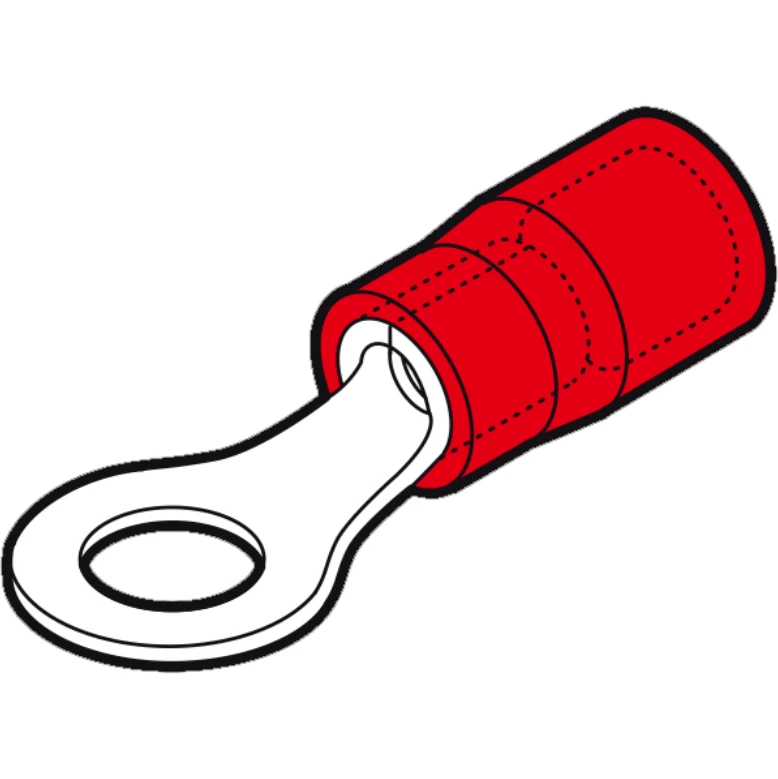

Cembre Ring Terminal Red
Cembre Ring Terminal Red
Cembre Ring Terminal Red - Image 2
Cembre Ring Terminal Red - Image 3
Cembre Ring Terminal Red - Image 4

Cembre Ring Terminal Red

£0.14 Incl. VAT

0.25mm²-1.5mm² Halogen free Polycarbonate insulated ring terminal M5 stud red · · · Insulation sleeve in Polycarbonate · · -20°C to +115°C Temperature Range · · Facilited Introduction of the conductor · · Halogen Free · · Electrolytically tin-plated to avoid oxidisation · · Annealed to guarantee optimum ductility

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: RP-M5 Brand: Product Code: 2500112551

Description

Technical Specifications  Technical Specifications Solderless copper terminals for copper conductors Stud size (imperial) 10 Sleeve form Short Material Copper Colour insulation Red Surface protection Tinned Flange shape Ring shape Insulation PC Bolt dimension (metric) 5 Max. current (Imax) – A Nominal cross section 0.25 – 1.5 mm² Useful for stranded conductors Yes Suitable for solid cores No For pull protected connections No Reel packaging No Suitable for round conductors Yes Suitable for insulated varnish No Suitable for flat conductors No Suitable for high temperatures (to 650 °C) No Suitable for fine strand conductors Yes · Technical Data Sheet – Click to Download
