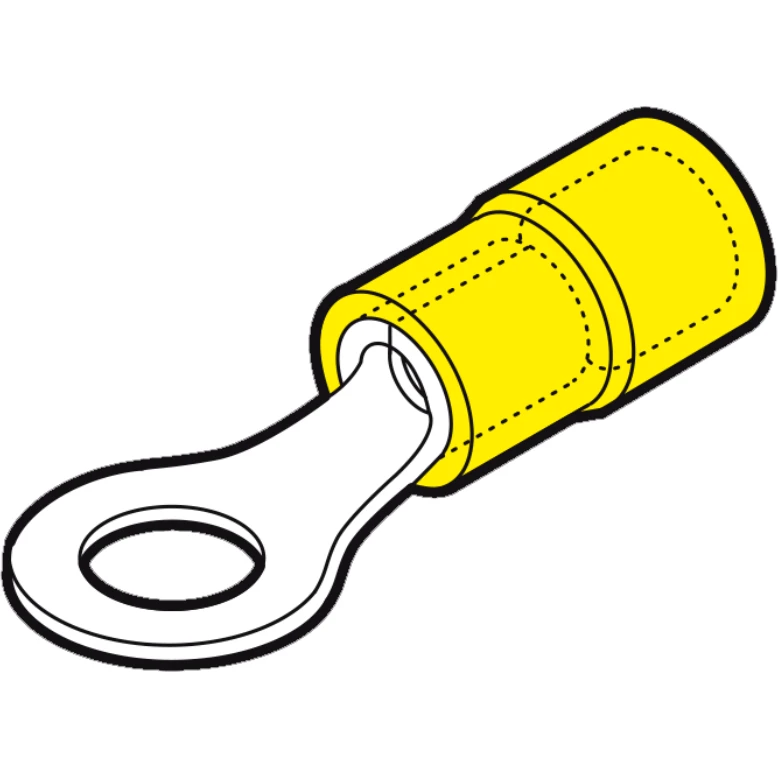

Cembre Ring Terminal Yellow
Cembre Ring Terminal Yellow
Cembre Ring Terminal Yellow - Image 2
Cembre Ring Terminal Yellow - Image 3
Cembre Ring Terminal Yellow - Image 4

Cembre Ring Terminal Yellow

£0.17 Incl. VAT

4mm²-6mm² PVC insulated ring terminal M3.5 stud yellow · · · PVC insulation · · -20°C to +80°C Temperature Range · · Manufactured from Electrolytic Copper Wire with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation · · Annealed to guarantee optimum ductility · · Facilited Introduction of the conductor

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: GF-M3.5 Categories: , , , Brand: Product Code: 2500238936

Description

Technical Specifications  Technical Specifications Solderless copper terminals for copper conductors Sleeve form Short Material Copper Insulation Polyvinyl chloride (PVC) Colour insulation Yellow Surface protection Tinned Flange shape Ring shape Bolt dimension (metric) 3.5 Max. current (Imax) – A For pull protected connections No Nominal cross section 4 – 6 mm² Useful for stranded conductors Yes Reel packaging No Suitable for round conductors Yes Suitable for solid cores No Suitable for flat conductors No Suitable for high temperatures (to 650 °C) No Suitable for fine strand conductors No Suitable for insulated varnish No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
