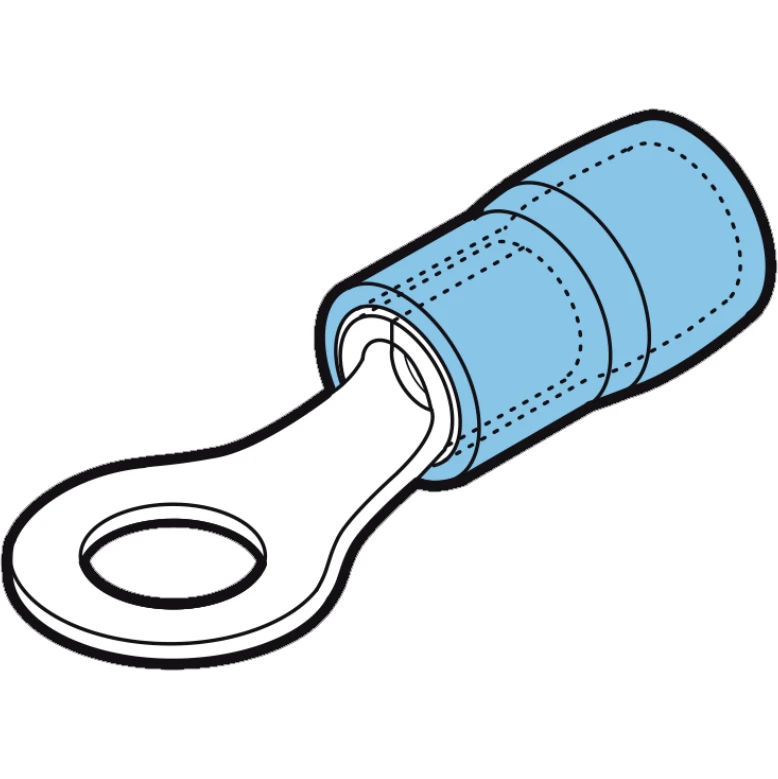

Cembre Terminal 1.5-2.5mm2 Blue
Cembre Terminal 1.5-2.5mm2 Blue
Cembre Terminal 1.5-2.5mm2 Blue - Image 2
Cembre Terminal 1.5-2.5mm2 Blue - Image 3
Cembre Terminal 1.5-2.5mm2 Blue - Image 4

Cembre Terminal 1.5-2.5mm2 Blue

£0.24 Incl. VAT

1.5mm²-2.5mm² Reinforced Polyamide PA6.6 insulated ring terminal M6 stud blue · · · Insulation Sleeve Nylon PA6.6 · · -20°C to +115°C Temperature Range · · Manufactured from Brass Strip with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation · · Halogen Free · · Facilited Introduction of the conductor

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: BKY-M6/1 Categories: , , , Brand: Product Code: 2501001127

Description

Technical Specifications  Technical Specifications Solderless copper terminals for copper conductors Material Copper Sleeve form Short Colour insulation Blue Insulation PA Flange shape Ring shape Surface protection Tinned Bolt dimension (metric) 6 Max. current (Imax) – A Reel packaging No Nominal cross section 1.5 – 2.5 mm² Useful for stranded conductors Yes For pull protected connections No Suitable for solid cores No Suitable for flat conductors No Suitable for fine strand conductors Yes Suitable for insulated varnish No Suitable for round conductors Yes Suitable for high temperatures (to 650 °C) No
