Cembre Terminal 10mm2
Cembre Terminal 10mm2
Cembre Terminal 10mm2 - Image 2
Cembre Terminal 10mm2 - Image 3

Cembre Terminal 10mm2

£0.67 Incl. VAT

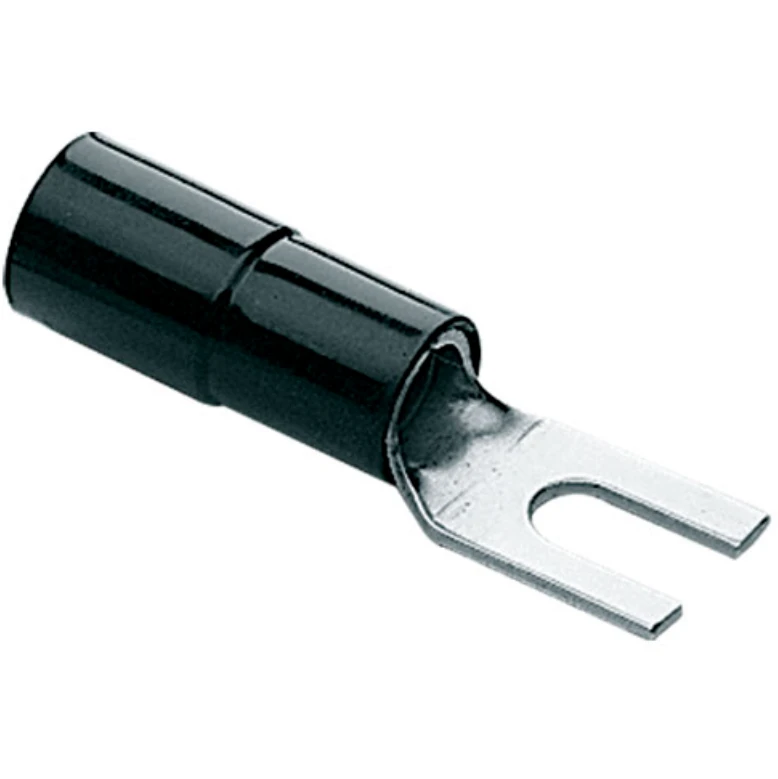

10mm² Polyamide PA6.6 insulated fork terminal 5.3mm fork width black · · · Insulation sleeve in Polyamide PA6.6 · · Facilitated introduction of the conductor · · -25°C to +115°C Temperature Range · · Electrolytically tin-plated to avoid oxidisation · · Manufactured from electrolytic Copper wire with a purity greater than 99.9% · · inspection hole for checkin conductor

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: ANE2-U5 Brand: Product Code: 2500112000

Description

Technical Specifications  Technical Specifications Solderless copper terminals for copper conductors Sleeve form Short Material Copper Flange shape Fork shape Colour insulation Black Max. current (Imax) – A Insulation PA Surface protection Tinned For pull protected connections No Nominal cross section 10 – 10 mm² Bolt dimension (metric) – Useful for stranded conductors Yes Reel packaging No Suitable for solid cores No Suitable for fine strand conductors Yes Suitable for insulated varnish No Suitable for flat conductors No Suitable for high temperatures (to 650 °C) No Suitable for round conductors Yes
