Cembre Terminal 4-6mm2 Yellow
Cembre Terminal 4-6mm2 Yellow
Cembre Terminal 4-6mm2 Yellow - Image 2
Cembre Terminal 4-6mm2 Yellow - Image 3
Cembre Terminal 4-6mm2 Yellow - Image 4

Cembre Terminal 4-6mm2 Yellow

£0.41 Incl. VAT

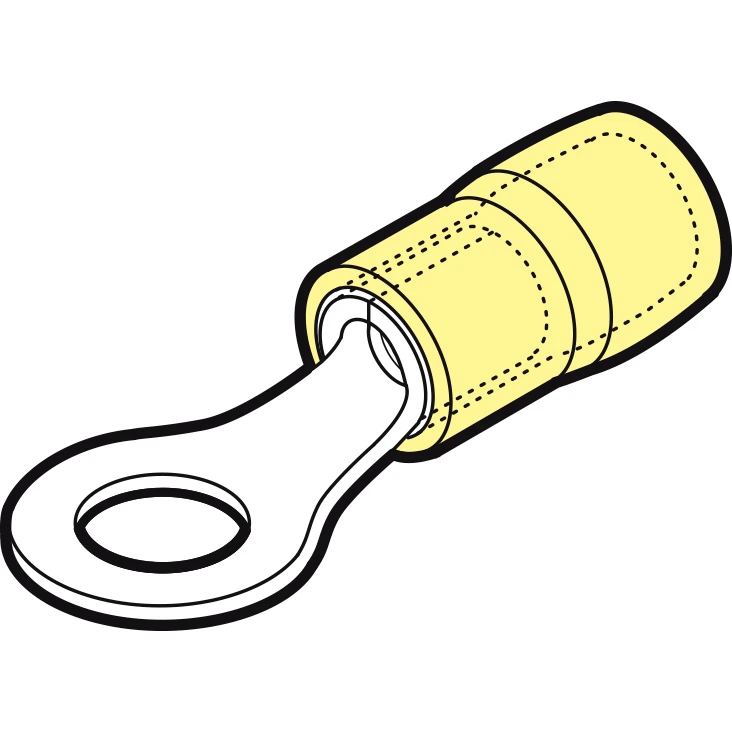

4mm²-6mm² Reinforced Polyamide PA6.6 insulated ring terminal M5 stud yellow · · · Insulation Sleeve Nylon PA6.6 · · -20°C to +115°C Temperature Range · · Manufactured from Brass Strip with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation · · Halogen Free · · Facilited Introduction of the conductor

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: GKY-M5 Categories: , Brand: Product Code: 1050377853

Description

Technical Specifications  Technical Specifications Solderless copper terminals for copper conductors Sleeve form Short Material Copper Colour insulation Yellow Flange shape Ring shape Surface protection Tinned Insulation PA Bolt dimension (metric) 5 Max. current (Imax) – A Suitable for solid cores No Nominal cross section 4 – 6 mm² Suitable for high temperatures (to 650 °C) No Suitable for insulated varnish No Suitable for fine strand conductors Yes Suitable for flat conductors No Suitable for round conductors Yes Reel packaging No Useful for stranded conductors Yes For pull protected connections No
