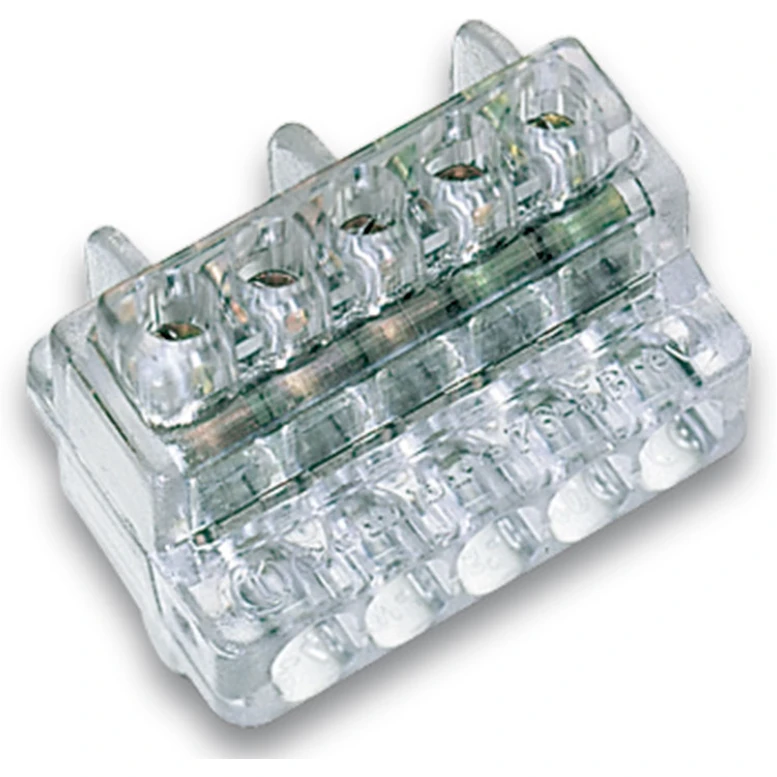

Cembre Terminal Block
Cembre Terminal Block
Cembre Terminal Block - Image 2

Cembre Terminal Block

£5.48 Incl. VAT

Single pole terminal block indirect clamping, Connecting Capacity 1mm²-6mm², No. of ways 5, with clamp for DIN rail · · · Polycarbonate Body · · IP 20 Protection Class · · Self-extingushing Class V0 (UL 94) · · Max Operating Temp +85 °C · · Electrolytically tin-plated to avoid oxidisation · · Nominal Voltage 450v

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: Z6-5D Categories: , , Brand: Product Code: 2500113074

Description

Technical Specifications  Technical Specifications Single- and multi-pole terminal strip Inflammability class of insulation material acc. with UL94 V0 Material insulation body Thermoplastic Mounting method DIN rail (top hat rail) 35 mm Type of electrical connection 1 Screw connection Number of clamp positions per pole 5 Number of poles 1 Rated voltage 450 V Drill hole distance centrically – mm Rated current In – A Operating temperature -10 – 85 °C Connectable conductor cross section multi-wired 1 – 6 mm² Connectable conductor cross section fine-strand with cable end sleeve – – – mm² Connectable conductor cross section solid-core 1 – 6 mm² Connectable conductor cross section fine-strand without cable end sleeve 1 – 6 mm² Transparent Yes Explosion-tested version ‘Ex e’ No Closing plate required No
