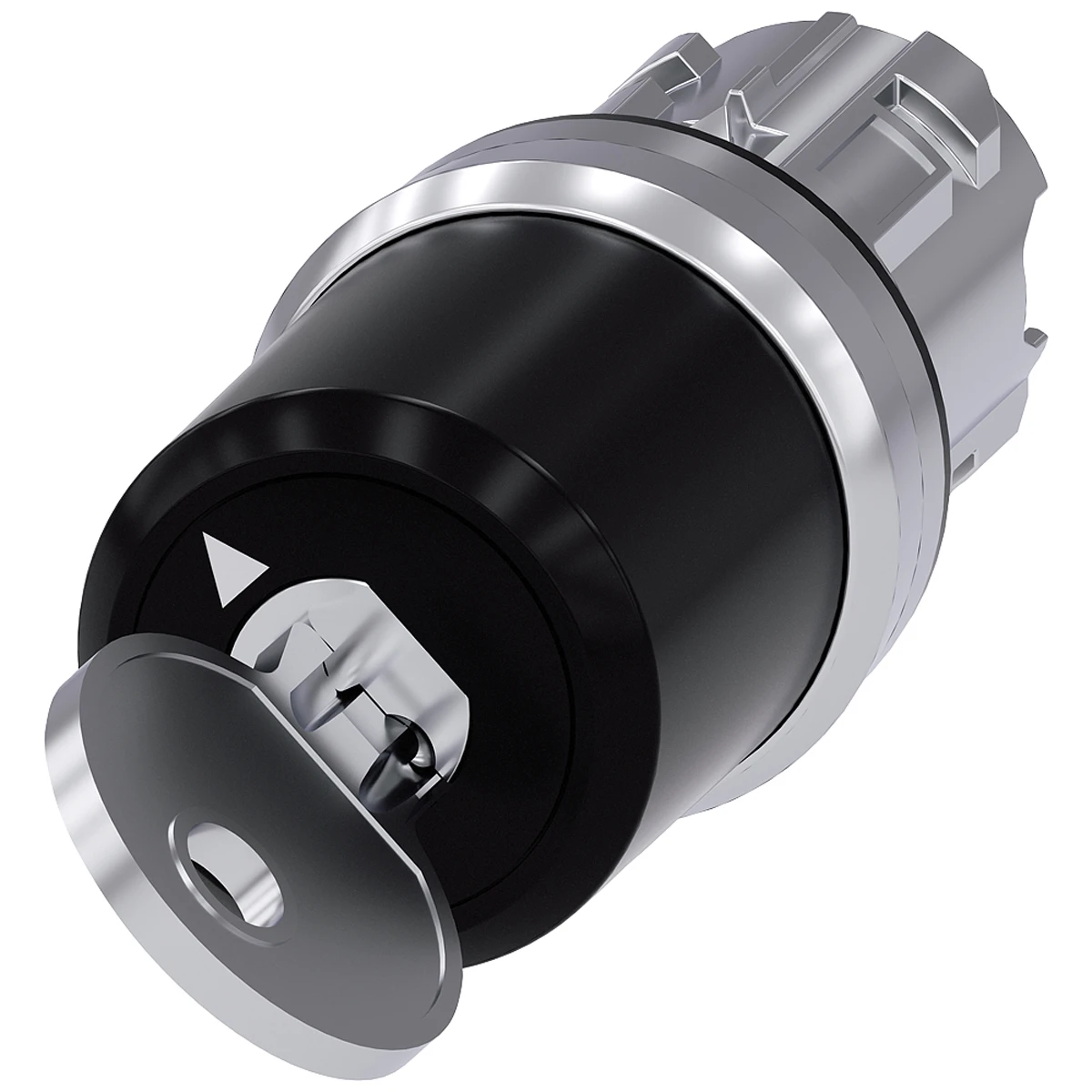

Siemens CES Key Operated Switch 22mm Round Metal
Siemens CES Key Operated Switch 22mm Round Metal
Siemens CES Key Operated Switch 22mm Round Metal - Image 2
Siemens CES Key Operated Switch 22mm Round Metal - Image 3

Siemens CES Key Operated Switch 22mm Round Metal

£78.12 Incl. VAT

Siemens standard round CES key-operated selector switch made up of a silver coloured metal actuator surrounded by a high gloss silver colour metal ring. The mounting diameter is 22.3mm whereas the actuating element has a 29.5mm diameter. · · · Manner of function: Latching · · Actuating angle: 90° · · Number of switching positions: 2 · · Switch position for key distraction: O+I · · Mechanical sevice life: 300000 cycles · · Maximum operating frequency: 1800 1/h · · IP20/66/67/69 Degree of protection · · Vibration resistance: 5g (10-500Hz) · · Shock resistance: 50g · · Ambient temperature: -25 to 70°C

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 3SU1050-5BF11-0AA0 Categories: , , , Brand: Product Code: 1051118364

Description

Technical Specifications  Technical Specifications Front element for selector switch Type of control element Key Construction type lens Rectangular Colour control element Silver Material front ring Metal Width opening 29.5 mm Height opening 61 mm Hole diameter 22.3 mm Number of switch positions 2 Spring-return No With front ring Yes Suitable for illumination No Switching function latching No · Technical Data Sheet – Click to Download
