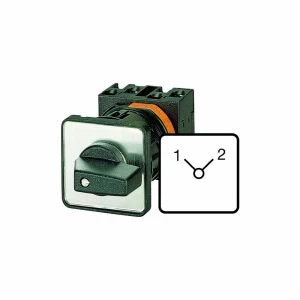

Changeover Switches, T0, 20 A, centre mounting, 1 contact unit(s), Contacts: 2, 90 °, maintained, Without 0 (Off) position, 1-2, Design number 8220
Changeover Switches, T0, 20 A, centre mounting, 1 contact unit(s), Contacts: 2, 90 °, maintained, Without 0 (Off) position, 1-2, Design number 8220
Changeover Switches, T0, 20 A, centre mounting, 1 contact unit(s), Contacts: 2, 90 °, maintained, Without 0 (Off) position, 1-2, Design number 8220 - Image 2
Changeover Switches, T0, 20 A, centre mounting, 1 contact unit(s), Contacts: 2, 90 °, maintained, Without 0 (Off) position, 1-2, Design number 8220 - Image 3

Changeover Switches, T0, 20 A, centre mounting, 1 contact unit(s), Contacts: 2, 90 °, maintained, Without 0 (Off) position, 1-2, Design number 8220

£22.10 Incl. VAT

Changeover switch, Product range: Control switches, Part group reference: T0, with black thumb grip and front plate, Contacts: 2, Degree of Protection: Front IP65, Design: centre mounting, Switching angle: 90 °, Switching performance: maintained, Without 0 (Off) position, front plate: 1-2, Motor rating AC-23A, 50 – 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 1 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3 · · · Black thumb grip and front plate · · 90° switching angle · · IP65 rated (front) · · Centre mounting · · 690V AC maximum voltage · · 2 positions

58 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: T0-1-8220/EZ Categories: , , Brand: Part Number: 2500019728

Description

Technical Specifications  Technical Specifications Off-load switch Degree of protection (NEMA), front side 12 Housing material Plastic Degree of protection (IP), front side IP65 Model Reverser Type of electrical connection of main circuit Screw connection Type of control element Short thumb-grip Number of auxiliary contacts as normally open contact 0 Suitable for front mounting 4-hole Yes Number of poles 1 Rated operation power at AC-3, 400 V 4 kW Number of auxiliary contacts as normally closed contact 0 Rated permanent current Iu 20 A Rated operation current Ie at AC-3, 400 V 11.5 A Number of auxiliary contacts as change-over contact 0 Suitable for floor mounting No With retraction in 0-position No Suitable for intermediate mounting No Suitable for distribution board installation No Complete device in housing No With 0 (off) position No · Technical Data Sheet – Click to Download
