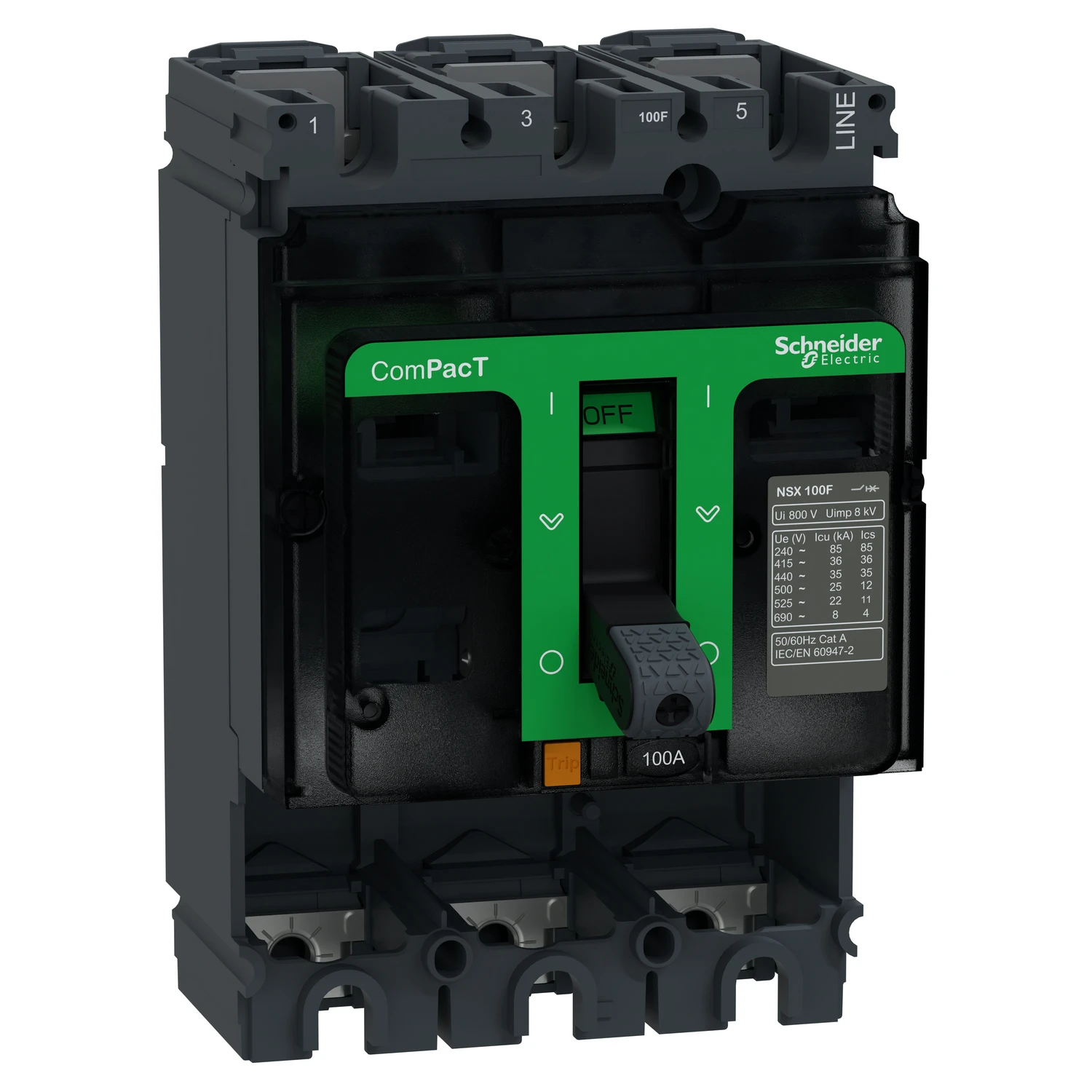

Schneider Electric Circuit Breaker Basic Frame ComPacT NSX100F 36kA at 415 VAC 50/60 Hz 100 A without Trip Unit 3 Pole
Schneider Electric Circuit Breaker Basic Frame ComPacT NSX100F 36kA at 415 VAC 50/60 Hz 100 A without Trip Unit 3 Pole
Schneider Electric Circuit Breaker Basic Frame ComPacT NSX100F 36kA at 415 VAC 50/60 Hz 100 A without Trip Unit 3 Pole - Image 2
Schneider Electric Circuit Breaker Basic Frame ComPacT NSX100F 36kA at 415 VAC 50/60 Hz 100 A without Trip Unit 3 Pole - Image 3
Schneider Electric Circuit Breaker Basic Frame ComPacT NSX100F 36kA at 415 VAC 50/60 Hz 100 A without Trip Unit 3 Pole - Image 4

Schneider Electric Circuit Breaker Basic Frame ComPacT NSX100F 36kA at 415 VAC 50/60 Hz 100 A without Trip Unit 3 Pole

£186.41 Incl. VAT

· · This is a 3 poles basic frame for ComPacT NSX100F. · · ComPacT NSX is designed to optimize space and breaking capacity for all standard and specific applications. · · This basic frame comes without trip unit, and is compatible with any type of trip unit ordered separately. · · The breaking capacity Icu is 36kA at 415VAC 50/60Hz. · · The operational voltage is 690VAC 50/60Hz (limited to 440VAC 50/60Hz if there is an earth-leakage protection). · · It can be equipped with a variety of optional functions and accessories. · · The dimensions are 105mm x 161mm x 86mm. · · It ensures compliance with international standards (IEC 60947), CCC, EAC and marine specifications. · · ComPacT NSX100F is part of Schneider Electric EcoStruxure Power architecture.

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: C10F3 Categories: , , Brand: Product Code: 2501503740

Description

Technical Specifications  Technical Specifications Moulded case circuit breaker (MCCB) Degree of protection (IP rating) IP40 Position of connection for main current circuit Front Type of control element Toggle Type of electrical connection of main circuit Screw connection Device construction Suitable for fixed installation Number of auxiliary contacts as change-over contact 0 Power loss 14.1 W Number of auxiliary contacts as normally open contact 0 Rated short-circuit breaking capacity Icu at 400 V, 50 Hz 36 kA Number of auxiliary contacts as normally closed contact 0 Rated permanent current Iu 100 A Overload release current setting – – – A Number of poles 3 Rated voltage 690 – 690 V Adjustment range short-term delayed short-circuit release – – – A Adjustment range undelayed short-circuit release – – – A With integrated under voltage release No Integrated earth fault protection No Suitable for DIN rail (top hat rail) mounting No Motor drive integrated No DIN rail (top hat rail) mounting optional Yes Switched-off indicator available Yes Complete device with protection unit No Motor drive optional Yes · Technical Data Sheet – Click to Download
