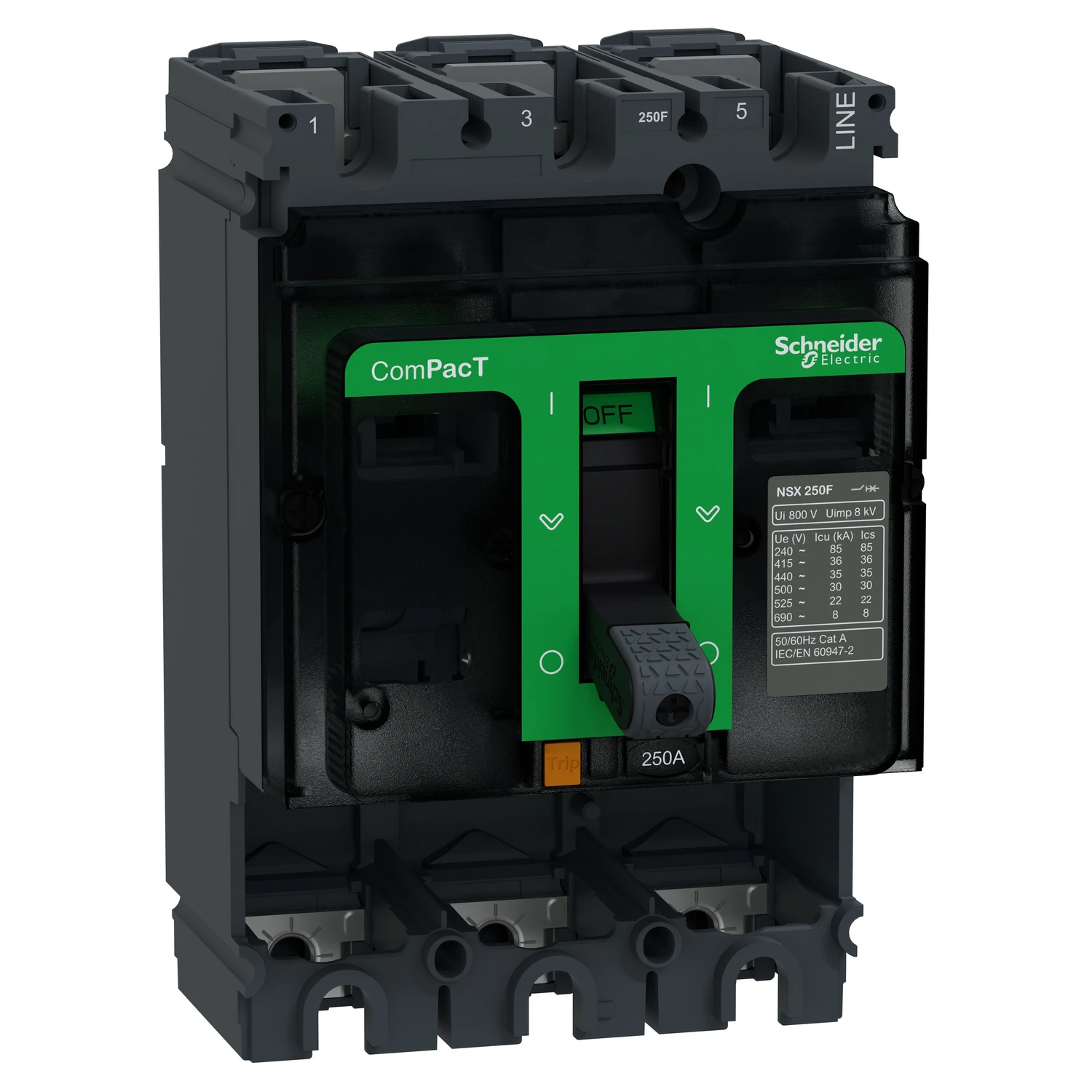

Circuit Breaker basic frame, ComPacT NSX250F, 36 kA at 415 VAC 50/60 Hz, 250 A, without Trip Unit, 3 poles
Circuit Breaker basic frame, ComPacT NSX250F, 36 kA at 415 VAC 50/60 Hz, 250 A, without Trip Unit, 3 poles
Circuit Breaker basic frame, ComPacT NSX250F, 36 kA at 415 VAC 50/60 Hz, 250 A, without Trip Unit, 3 poles - Image 2
Circuit Breaker basic frame, ComPacT NSX250F, 36 kA at 415 VAC 50/60 Hz, 250 A, without Trip Unit, 3 poles - Image 3
Circuit Breaker basic frame, ComPacT NSX250F, 36 kA at 415 VAC 50/60 Hz, 250 A, without Trip Unit, 3 poles - Image 4

Circuit Breaker basic frame, ComPacT NSX250F, 36 kA at 415 VAC 50/60 Hz, 250 A, without Trip Unit, 3 poles

£409.09 Incl. VAT

· · This is a 3 poles basic frame for ComPacT NSX250F. · · ComPacT NSX is designed to optimize space and breaking capacity for all standard and specific applications. · · This basic frame comes without trip unit, and is compatible with any type of trip unit which has to be ordered separately · · The breaking capacity Icu is 36kA at 415VAC 50/60Hz. · · The operational voltage is 690VAC 50/60Hz (limited to 440VAC 50/60Hz if there is an earth-leakage protection). · · It can be equipped with a variety of optional functions and accessories. · · The dimensions are 105mm x 161mm x 86mm. · · It ensures compliance with international standards (IEC 60947), CCC, EAC and marine specifications. · · ComPacT NSX250F is part of Schneider Electric EcoStruxure Power architecture.

12 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: C25F3 Categories: , , Brand: Part Number: 2501503905

Description

Technical Specifications  Technical Specifications Moulded case circuit breaker (MCCB) Degree of protection (IP rating) IP40 Device construction Built-in device fixed built-in technique Position of connection for main current circuit Front Type of control element Toggle Type of electrical connection of main circuit Screw connection Rated permanent current Iu 250 A Number of auxiliary contacts as normally open contact 0 Power loss 52.8 W Rated short-circuit breaking capacity Icu at 400 V, 50 Hz 36 kA Number of auxiliary contacts as change-over contact 0 Number of auxiliary contacts as normally closed contact 0 Overload release current setting – – – A Suitable for DIN rail (top hat rail) mounting No Integrated earth fault protection No With integrated under voltage release No Adjustment range undelayed short-circuit release – – – A Adjustment range short-term delayed short-circuit release – – – A Rated voltage 690 – 690 V Number of poles 3 DIN rail (top hat rail) mounting optional Yes Switched-off indicator available Yes Complete device with protection unit No Motor drive optional Yes Motor drive integrated No
