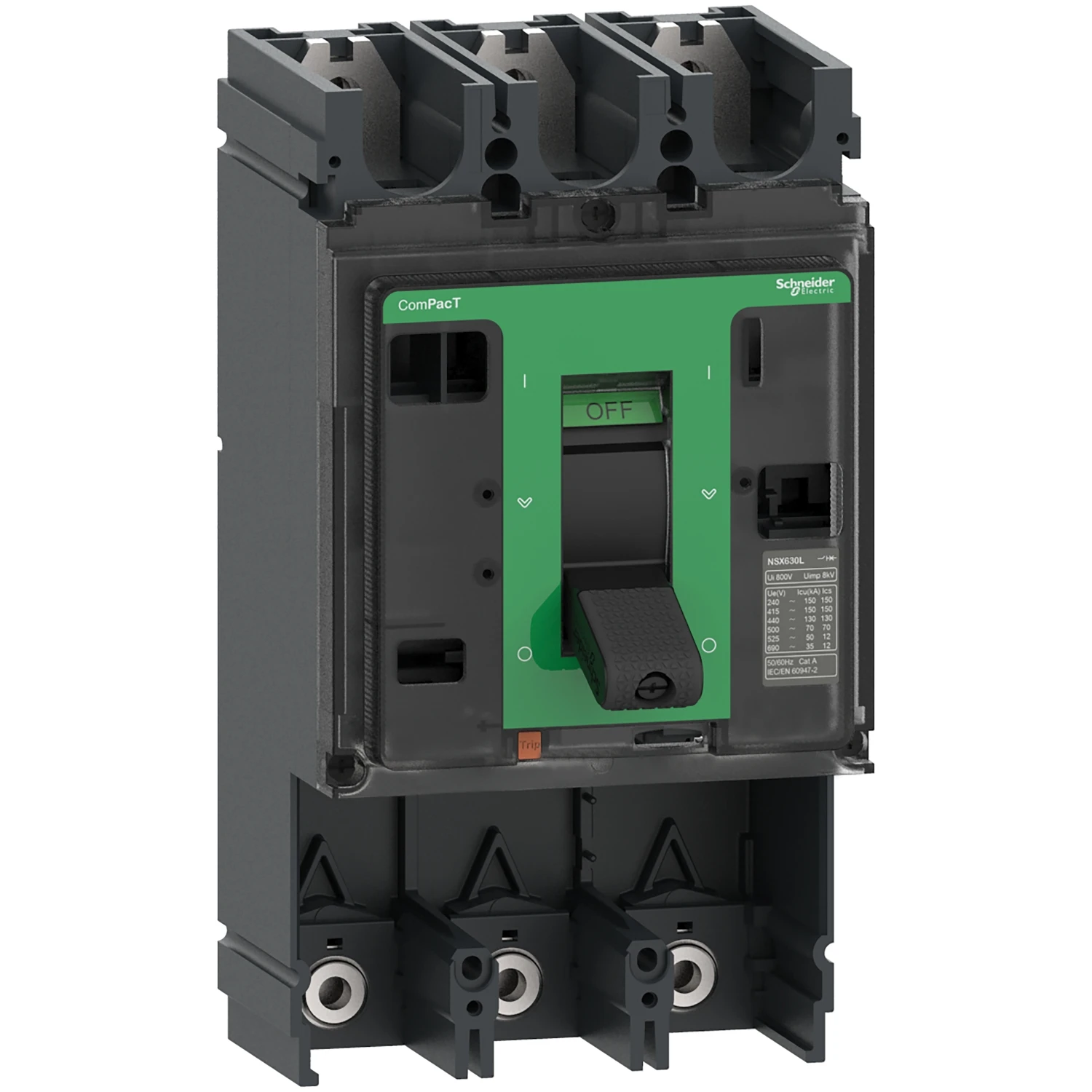

Circuit Breaker basic frame, ComPacT NSX400N, 50 kA at 415 VAC 50/60 Hz, 400 A, without Trip Unit, 3 poles
Circuit Breaker basic frame, ComPacT NSX400N, 50 kA at 415 VAC 50/60 Hz, 400 A, without Trip Unit, 3 poles
Circuit Breaker basic frame, ComPacT NSX400N, 50 kA at 415 VAC 50/60 Hz, 400 A, without Trip Unit, 3 poles - Image 2
Circuit Breaker basic frame, ComPacT NSX400N, 50 kA at 415 VAC 50/60 Hz, 400 A, without Trip Unit, 3 poles - Image 3
Circuit Breaker basic frame, ComPacT NSX400N, 50 kA at 415 VAC 50/60 Hz, 400 A, without Trip Unit, 3 poles - Image 4

Circuit Breaker basic frame, ComPacT NSX400N, 50 kA at 415 VAC 50/60 Hz, 400 A, without Trip Unit, 3 poles

£688.79 Incl. VAT

· · This is a 3 poles basic frame for ComPacT NSX400N. · · ComPacT NSX is designed to optimize space and breaking capacity for all standard and specific applications. · · This basic frame comes without trip unit, and is compatible with any type of trip unit which has to be ordered separately · · The breaking capacity Icu is 50kA at 415VAC 50/60Hz. · · The operational voltage is 690VAC 50/60Hz (limited to 440VAC 50/60Hz if there is an earth-leakage protection). · · It can be equipped with a variety of optional functions and accessories. · · The dimensions are 140mm x 255mm x 110mm. · · It ensures compliance with international standards (IEC 60947), CCC, EAC and marine specifications. · · ComPacT NSX400N is part of Schneider Electric EcoStruxure Power architecture.

31 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: C40N3 Categories: , , Brand: Part Number: 2501503929

Description

Technical Specifications  Technical Specifications Moulded case circuit breaker (MCCB) Position of connection for main current circuit Front Degree of protection (IP rating) IP40 Device construction Built-in device fixed built-in technique Type of electrical connection of main circuit Screw connection Type of control element Toggle Number of auxiliary contacts as normally open contact 0 Number of poles 3 Overload release current setting – – – A Adjustment range short-term delayed short-circuit release – – – A Rated voltage 690 – 690 V Rated short-circuit breaking capacity Icu at 400 V, 50 Hz 50 kA Power loss 57.6 W Rated permanent current Iu 400 A Number of auxiliary contacts as normally closed contact 0 Number of auxiliary contacts as change-over contact 0 Adjustment range undelayed short-circuit release – – – A Motor drive optional Yes Motor drive integrated No With integrated under voltage release No Integrated earth fault protection No Suitable for DIN rail (top hat rail) mounting No DIN rail (top hat rail) mounting optional Yes Switched-off indicator available Yes Complete device with protection unit No
