Siemens Motor Circuit Breaker Protection Triple Pole 11-16A Screw Terminal
Siemens Motor Circuit Breaker Protection Triple Pole 11-16A Screw Terminal
Siemens Motor Circuit Breaker Protection Triple Pole 11-16A Screw Terminal - Image 2

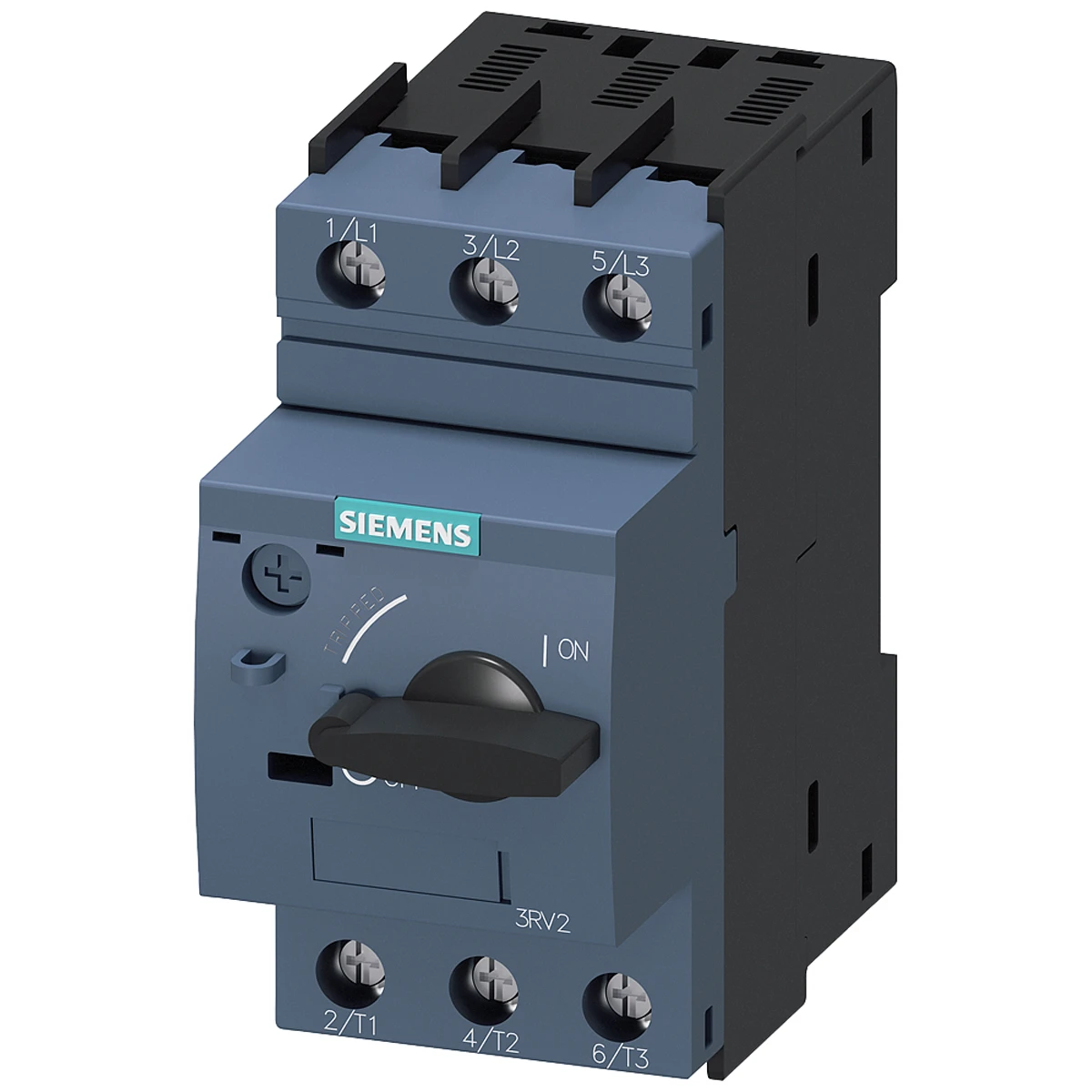

Siemens Motor Circuit Breaker Protection Triple Pole 11-16A Screw Terminal - Image 3

Siemens Motor Circuit Breaker Protection Triple Pole 11-16A Screw Terminal

£92.47 Incl. VAT

Siemens size S00 circuit breaker for motor protection with auxiliary switch. This circuit breaker has a CLASS 10 trip class and a thermal overload release design. Breaker also has a phase failure detection function. · · · Adjustable pick-up value current of overload release: 10 – 16A · · Response value current: 208A · · Screw clamp terminals: 2x (0.75 – 2.5mm²), 2 x 4mm² · · Any mounting position · · Mounting type: Screw/Snap-on mounting onto 35mm standard rail · · Operating voltage: 690V AC · · Tightening torque: 0.8 – 1.2Nm · · Mechanical/Electrical durability: 100000 cycles · · Ambient operating temperature: -20°C to 60°C · · IP20 Degree of protection

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 3RV2011-4AA10 Categories: , , , , Brand: Product Code: 1050391781

Description

Technical Specifications  Technical Specifications Motor protection circuit-breaker Switch off technique Magnetic Type of control element Rotating button Degree of protection (IP rating) IP20 Device construction Suitable for fixed installation Type of electrical connection of main circuit Screw connection Width 45 mm Height 97 mm Number of poles 3 Rated operation power at AC-3, 230 V 4 kW Rated operation power at AC-3, 400 V 7.5 kW Rated permanent current Iu 16 A Rated short-circuit breaking capacity Icu at 400 V, AC 55 kA Depth 97 mm Overload release current setting 10 – 16 A Adjustment range undelayed short-circuit release 208 – 208 A Rated operating voltage 690 – 690 V With thermal overload protection Yes With integrated auxiliary switch No With integrated under voltage release No Phase failure sensitive Yes · Technical Data Sheet – Click to Download
